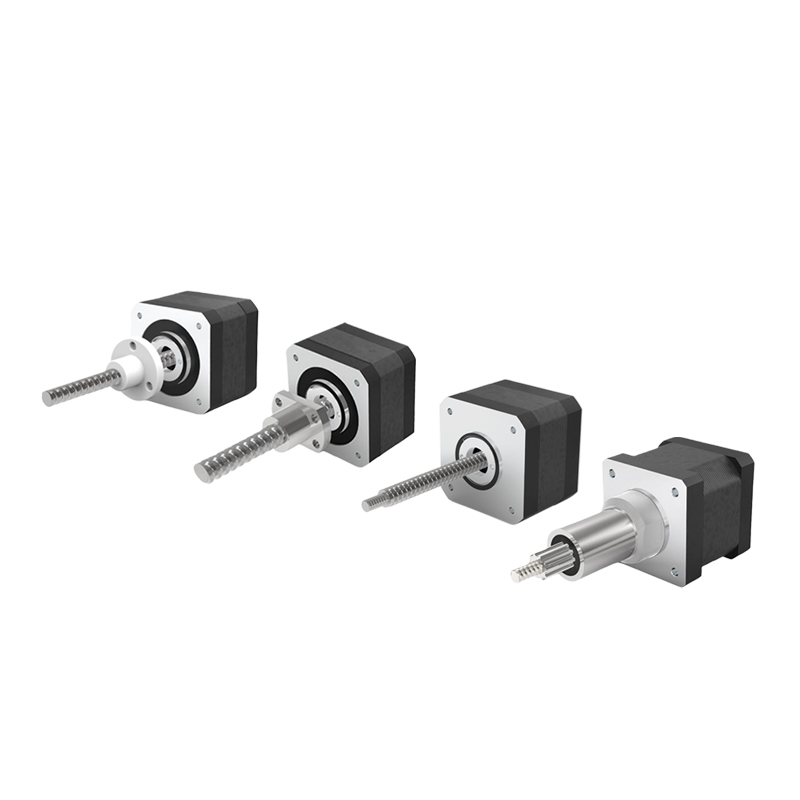

35HSG External Linear Stepper Motor

Availability:

Quantity:



Inquire Add to Basket

Product Description

NEMA14(35MM)2 PHASE 1.8°

Low Fever I1ligh Precision I Low Ncise I ligh-speed Response

35HSG External Linear Stepper Motor - HOLRY

Applications

35HSG External Linear Stepper Motor Appliction - HOLRY

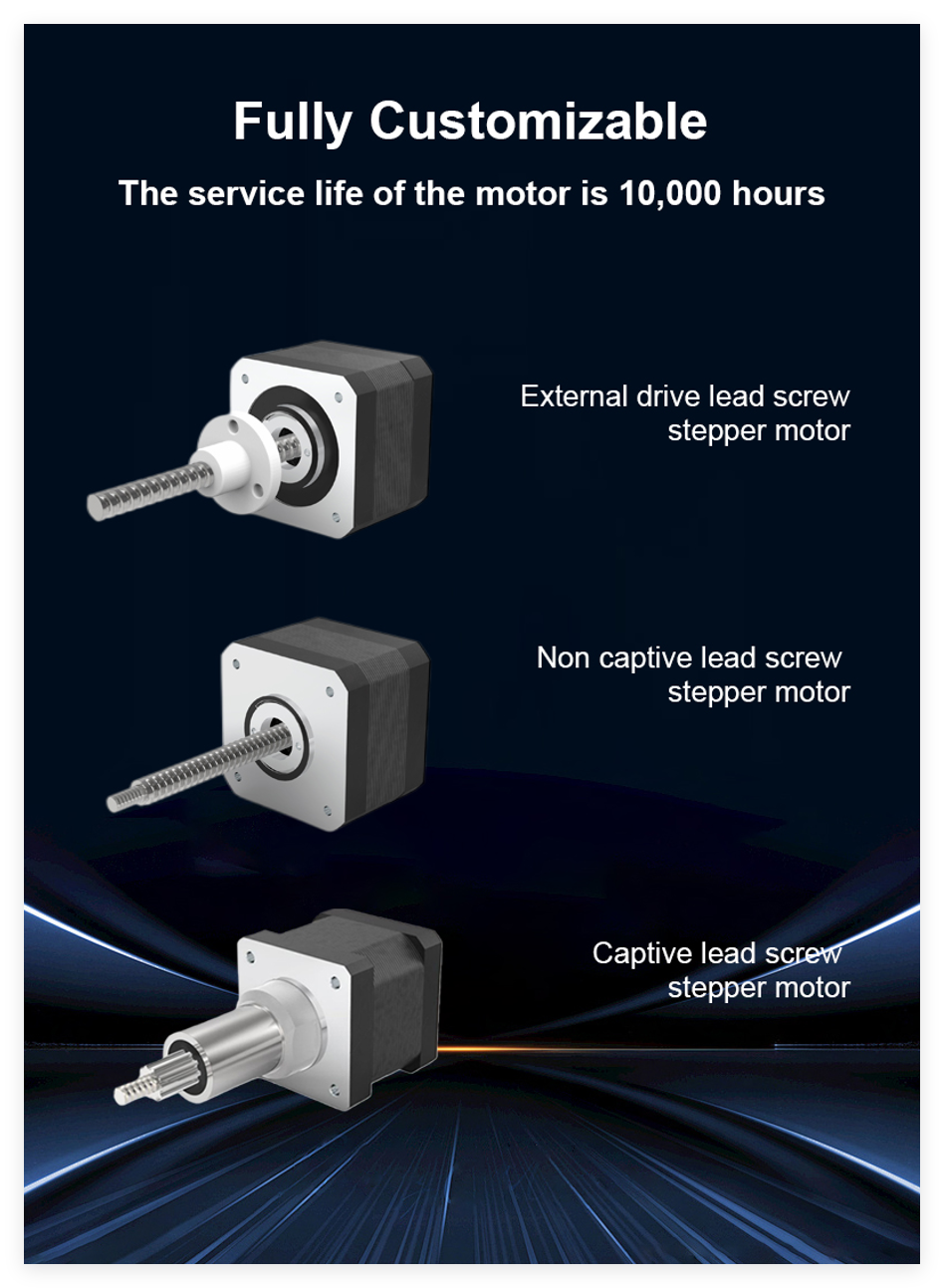

External drive lead screwstepper motor - HOLRY

Motor Size

Motor Parameters - HOLRY

MODEL	Rated Current (A)	Phase Resistance (Ω)	Weight (g)	Lead Wire (No.)	Motor Length (mm)
35HSG33	0.5	13.2	190	4	33.5
	1.0	3.5
	1.5	1.8
35HSG45	0.5	24.0	240		45
	1.0	6.0
	1.5	2.7

Lead Screw Specifications - HOLRY

Screw Diameter (mm)	Screw Lead (mm)	Screw Starts	Step Length (1.8°)	Step Length (0.9°)
6.35	0.6096	1	0.0030	0.0015
	1.2700	1	0.0064	0.0032
	1.5875	1	0.0079	0.0040
	2.4384	2	0.0122	0.0061
	2.5400	2	0.0127	0.0064
	3.1750	2	0.0159	0.0079
	4.8768	4	0.0244	0.0122
	5.0800	4	0.0254	0.0127
	6.3500	4	0.0318	0.0159
	9.7536	6	0.0488	0.0244
	12.7000	8	0.0635	0.0318
	25.4000	8	0.1270	0.0635
8	1.5000	1	0.0075	0.0038
	2.0000	1	0.0100	0.0050
	4.0000	2	0.0200	0.0100
	8.0000	4	0.0400	0.0200
	12.0000	6	0.0600	0.0300
	15.0000	6	0.0750	0.0375
	20.0000	8	0.1000	0.0500

Motor Size - HOLRY

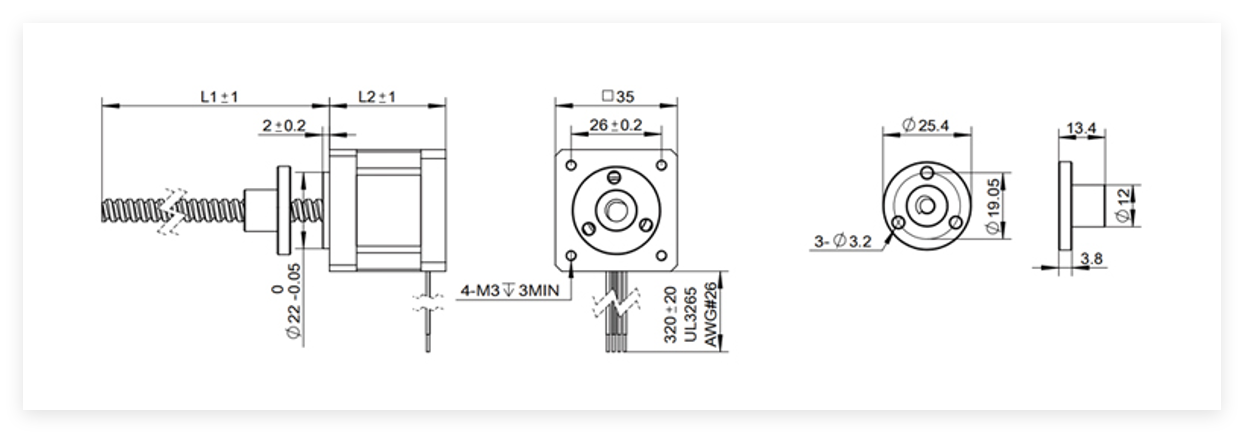

External drive laad screw stepper motor dimension

Extemal drive lead screw stepper motor dimension - HOLRY

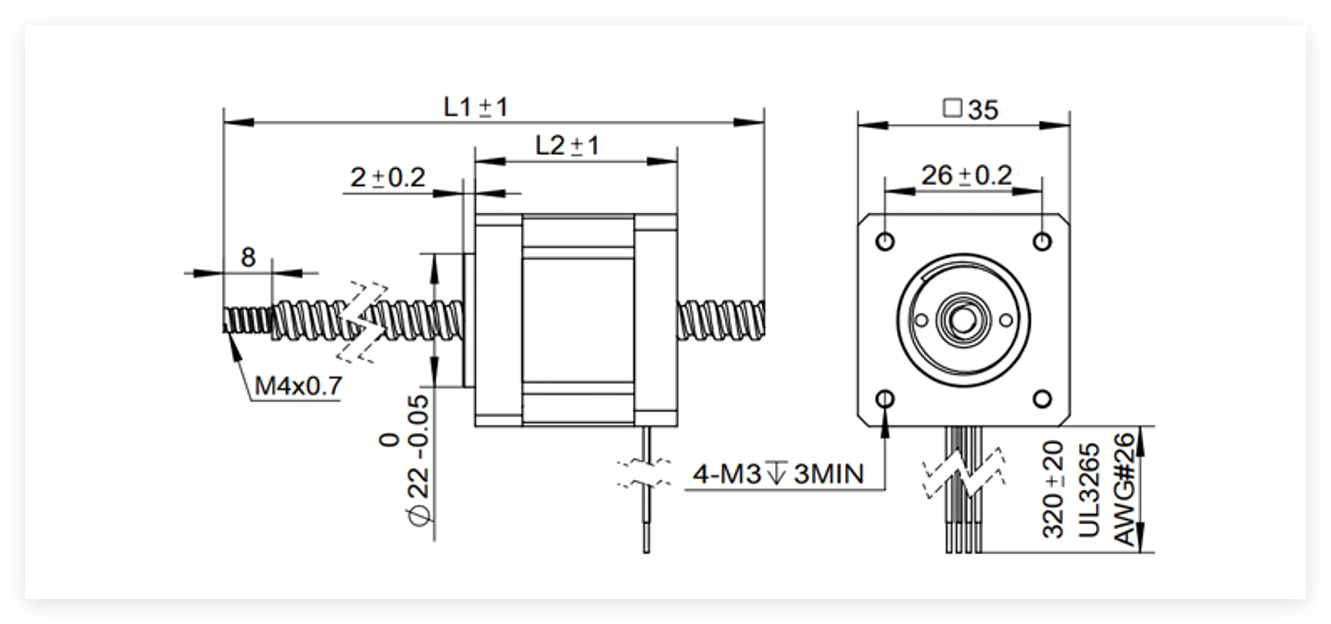

Non captive lead screw stepper motor dimension

Non captiva lead screw stepper motor dimension - HOLRY

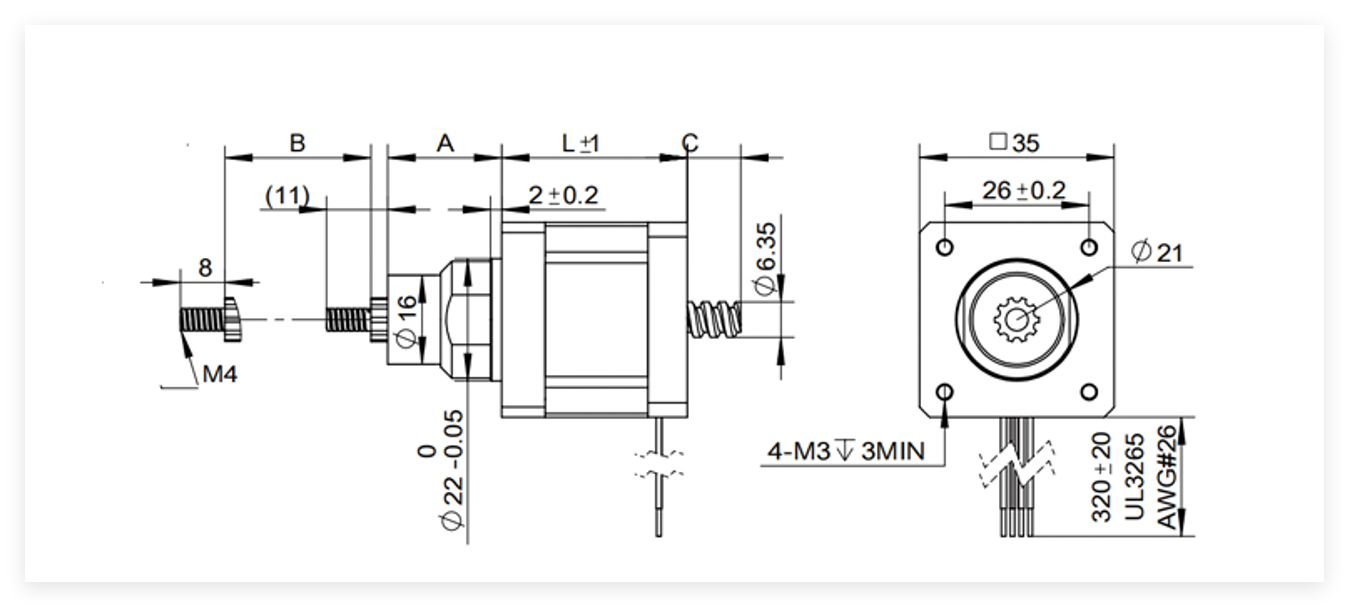

Captive lead screw stepper motor dimension

Captive lead screw stepser motor dimension - HOLRY

产品展示

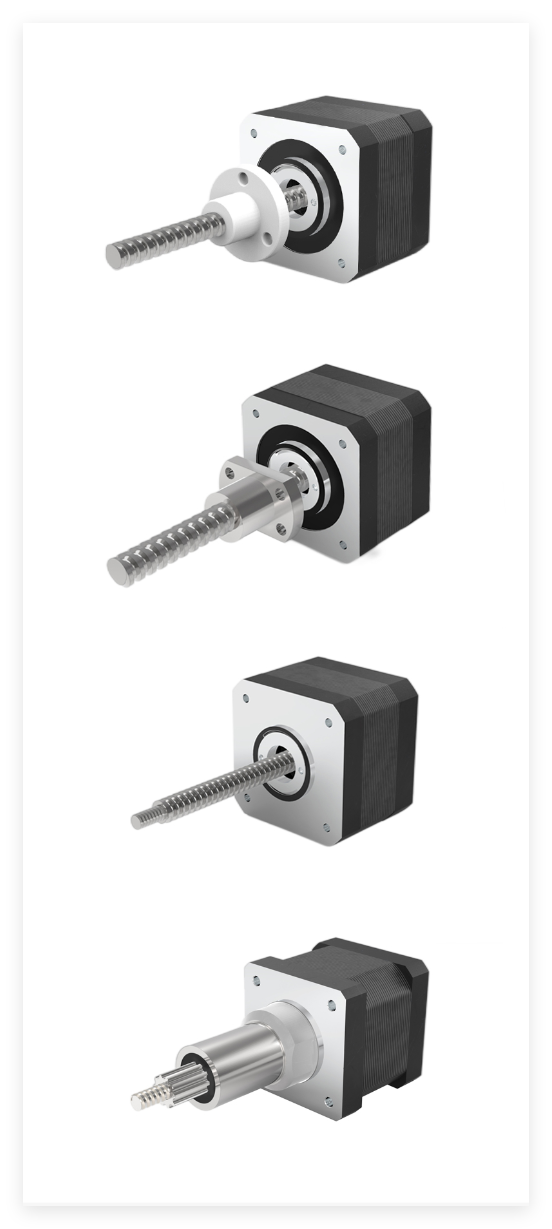

35HSG External Linear Stepper Motors - HOLRY

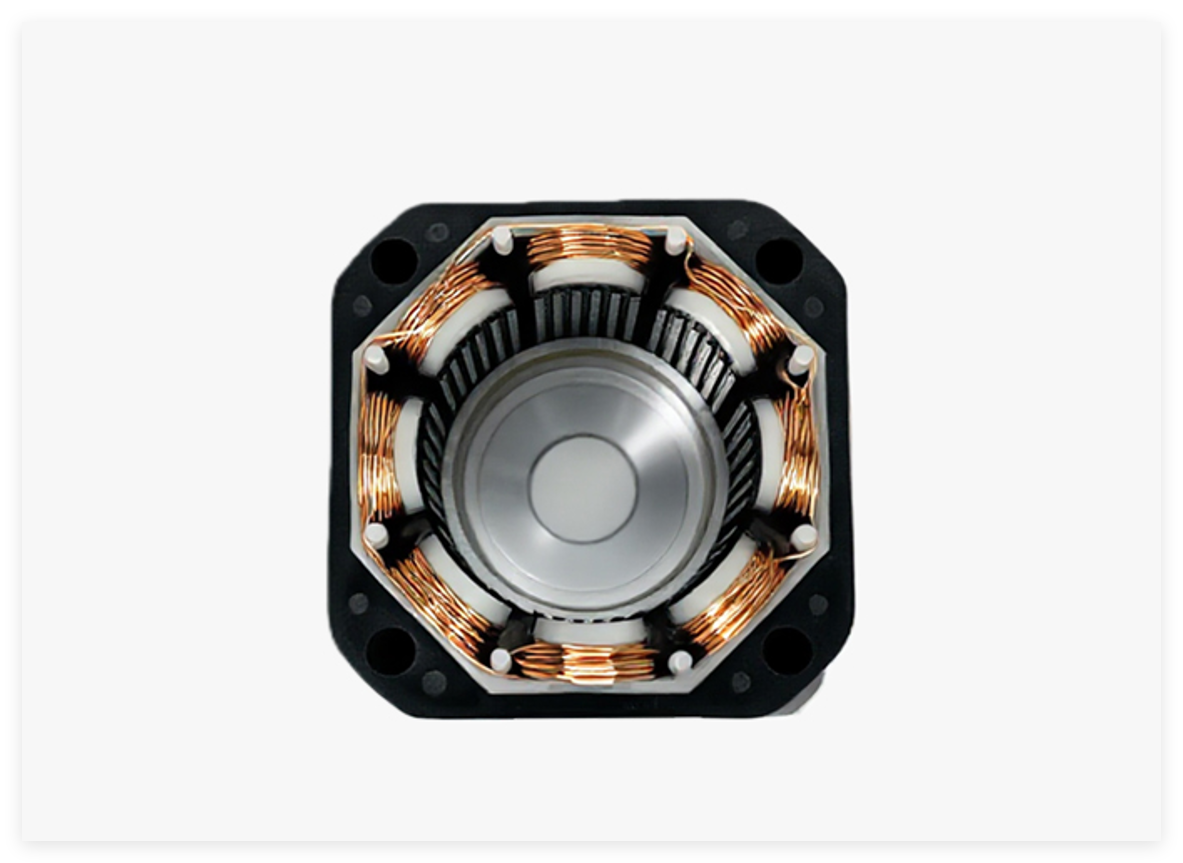

Motor Coil

The motor wires are made of pure copper enameled wire with advanced winding technology. The copper wires are evenly distributed, resulting in lower motor temperature rise. The motor will not deform or produce noise problems during long-term operation, thus extending its service life.

Motor Coil - HOLRY

Silicon Steel Rotor

Made of silicon steel and precision forged, with an imported rotor adhesive coating, the motor delivers greater torque, more stable output, lower noise, and a longer lifespan.

Silicon Steel Rotor - HOLRY

Certifications

Certifications - HOLRY

Certifications -- HOLRY

Q&A

Shipping & Delivery - HOLRY

We start production right after you order and ship it out fast.We'll choose the best carrier for your location and order size.Need a specific shipper? Just tell us when you order.

Returns & Warranty

Standard Products:1-year warranty. Return unused item in original condition (unused, in their original packaging,undamaged, and with all labels intact) within 7 days for a full refund, or exchange within 30 days. You cover return shipping. Custom Products:1-year warranty on defects only. No returns or exchanges. Buyers are responsible for selection errors.

Service - HOLRY

Customer Service & Suport

Quality First: We contrl quality from the start.
Quick order processing fast dispatching and worldwide delivery.
Full Support: Drawings and custom solutions available for all motors
