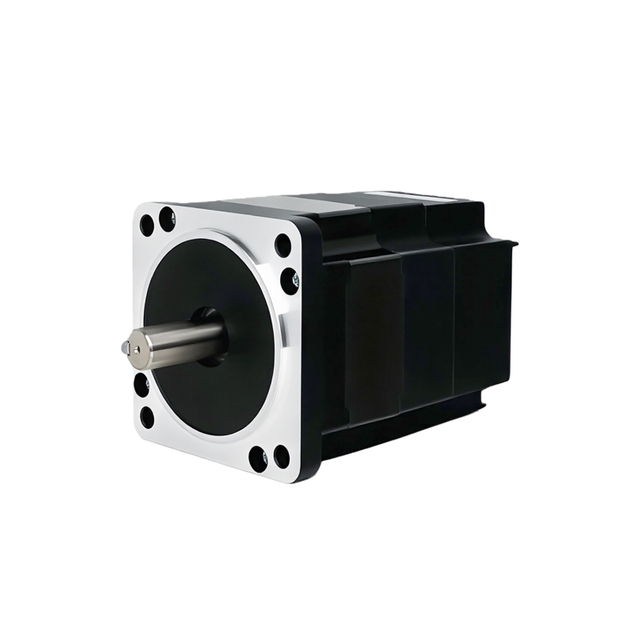

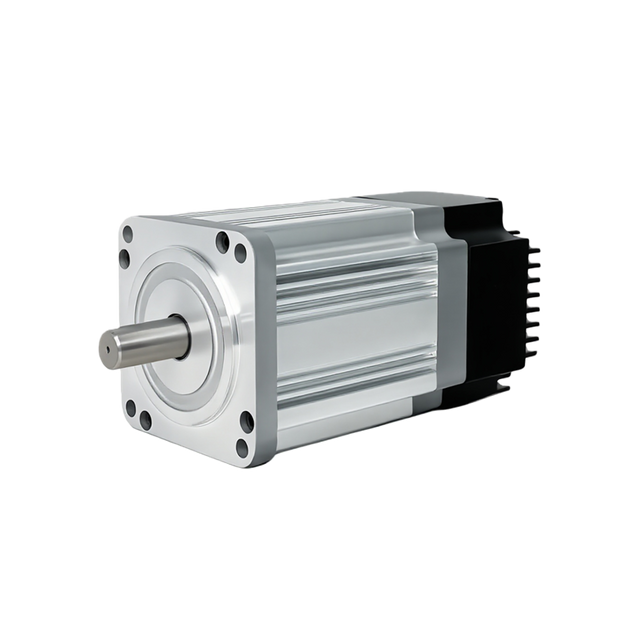

HOLRY integrated brushless motors offer high torque, energy efficiency & compact design for automation, robotics & CNC.  Ideal for wholesalers & OEMs.  Bulk pricing & custom solutions available.

Key Features

HOLRY integrated brushless motors combine high-performance BLDC technology with an integrated driver and controller in a compact design. Key advantages include:

• Superior torque-to-size ratio for space-constrained applications

• High energy efficiency, reducing operating costs

• Built-in driver eliminates external controllers

• Advanced protection features (overcurrent, overtemperature, short-circuit)

• Smooth, quiet operation with precise speed and position control

• Wide voltage range and customizable parameters for easy integration Ideal for robotics, CNC machinery, automated production lines, and industrial equipment.

Electrical Specifications

Our integrated brushless motors are engineered for demanding industrial applications. Typical electrical parameters include:

• Rated voltage: 24V–72V DC (customizable options available)

• Rated power: 50W–1500W

• Rated torque: 0.2–8.0 Nm (depending on model)

• Rated speed: 1000–6000 RPM

• Efficiency: up to 90%

• Hall sensor or sensorless control

• Communication interfaces: CANopen, RS485, PWM (customizable)

• Protection ratings: IP54–IP65 (depending on model) All models are tested for reliability and meet CE and RoHS standards.

Physical Specifications

HOLRY integrated BLDC motors are designed for easy installation and long-term reliability:

• Compact all-in-one design with integrated driver

• Frame sizes: 42mm, 57mm, 60mm, 80mm, 86mm, 110mm

• Body length: 50–250mm (model dependent)

• Shaft diameter: 5mm–19mm (D-cut or keyed options)

• Weight: 0.4–8.5 kg

• Mounting: flange or foot mount

• Operating temperature: -20°C to +60°C

• Robust aluminum housing for heat dissipation and durability
