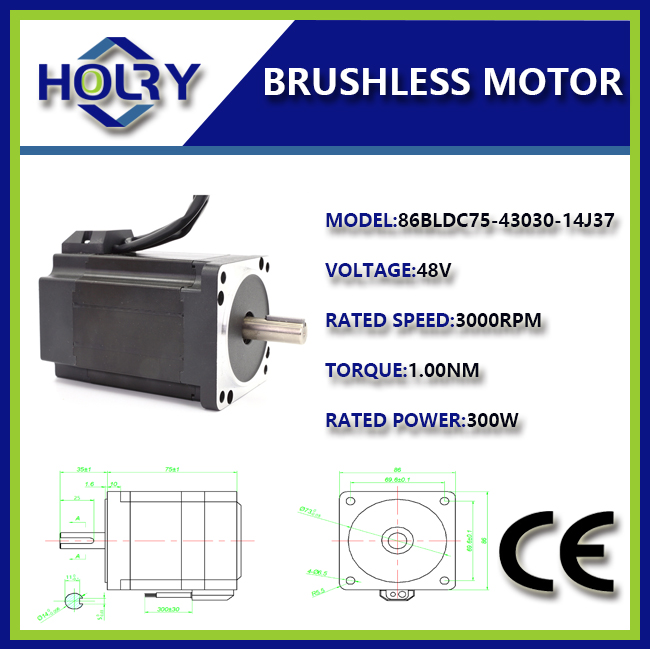

BLDC Motor Inrunner 86mm 3000rpm 3 Phase Hall Sensor 48V/310V BLDC Motor

Brushless, low interference: The brushless motor removes the brush. The most direct change is that no spark is generated when the brush motor is running, which greatly reduces the interference of the spark to the remote control radio equipment.
Low noise and stable operation: The brushless motor has no brush, the friction is greatly reduced during operation, the operation is stable, and the noise is much lower. This advantage is a huge support for model stability.
Long life and low maintenance cost: The wear of brushless and brushless motors is mainly on the bearings. From a mechanical point of view, a brushless motor is almost a maintenance-free motor. When necessary, just do some dust removal.

Model:
86BLDC
Brand:
Holry

Power:	200W 300W 500W 650W 750W
Availability:

Quantity:



Inquire Add to Basket

Product Description

Adapt to harsh environment, cost-effective, high efficiency, energy saving and environmental protection, efficiency above 80%; High-performance rare earth permanent magnet rotor, high torque, low inertia, and good dynamic response; Three-phase sine wave design, with excellent low-speed smoothing characteristics; Low noise, maintenance-free, and long service life;

low interference：

The brushless motor removes the brush. The most direct change is that no spark is generated when the brush motor is running, which greatly reduces the interference of the spark to the remote control radio equipment.

Low noise and stable operation:

The brushless motor has no brush, the friction is greatly reduced during operation, the operation is stable, and the noise is much lower. This advantage is a huge support for model stability.

Long life and low maintenance cost:

The wear of brushless and brushless motors is mainly on the bearings. From a mechanical point of view, a brushless motor is almost a maintenance-free motor. When necessary, just do some dust removal.

Technique Parameter

Bldc motor catalogue.pdf

86-1

Model	86BLDC80-43130-14J37	86BLDC105-45630-14J37	86BLDC115-46530-14J37	86BLDC130-47830-14J37	86BLDC130-57830-14J37
Number of Poles	4	4	4	4	4
Number of Phases	3	3	3	3	3
Nominal voltage VDC	48	48	48	48	310
Rated speed RPM	3000	3000	3000	3000	3000
Rated Torque N-m	1	1.8	2.1	2.5	2.5
Rated Current Amps	8.5	14.8	17	19.5	4
Output Power Watts	314	565	659	789	785
Peak Torque N-m	3	5.4	6.3	7.5	7.5
Peak Current Amps	25	42	51	55	12
Torque constant N-m/A	0.131	0.131	0.127	0.127	0.127
Back EMF V/k RPM	13.7	13.7	13.3	13.3	13.3
Rotor inertia kg·cm2	120	230	266	320	320
Body Length（L）mm	80	105	115	130	130
Weight kg	2.3	3.4	3.8	4.3	4.3

Shaft out method

1638608692(1)

Video

FAQ

1.What are the advantages of brushless DC motors?

Among these, brushless DC motors (BLDC) feature high efficiency and excellent controllability, and are widely used in many applications. The BLDC motor has power-saving advantages relative to other motor types.

2.When was the brushless motor invented?

Although the brushless motor was invented in the mid 19th century, it wasn’t until 1962 that it became commercially viable. What is a brushless motor? Brushless motors are synchronous electric motors that move around electronically.

3.What are the parts of a brushless motor?

They contain minimal parts such as the commutator, rotary parts and slip rings that contribute to increasing its weight. The brushless motors also dominate several applications such as hard drives, pumps, fans, coffee machines, hair dryers, mixers and CD/DVD players in variable and adjustable speed applications.
