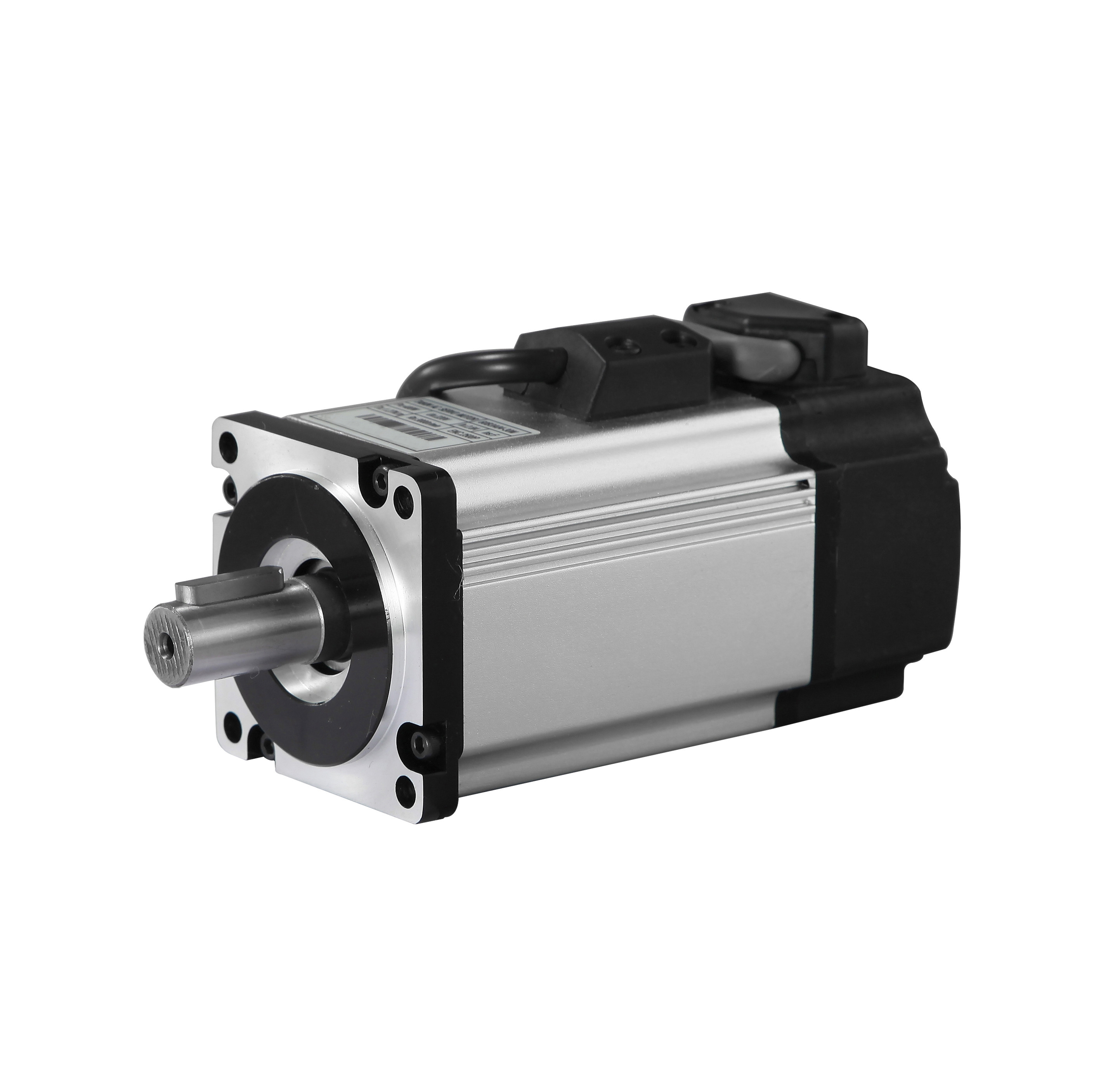

Nema31 Servo Motor 80mm×80mm 24v 750W 1KW Rated Speed: 3000rpm

  • Motor Frame Size: Nema 31 (80mmx80mm)
  • Rated Voltage: 24V
  • Maximum Speed: 5000 Rpm
  • Rated Speed: 4500 Rpm
  • Rated Torque: 2.39 Nm
  • Rated Current: 4.8 A/phase
  • HR080-B-00730-L
  • Holry
model:
Availability:
Quantity:

Product Description

Nema31 Servo Motor


Nema31 servo motors can be widely used in machine  tools, textiles, plastics, printing and dyeing, printing, building materials, packaging,  woodworking, chemical industries and other fields. The motor is composed of stator, rotor, high-precision, feedback components (such as:  incremental photoelectric encoder, resolver, etc.).

The use of high-performance rare earth  permanent magnetic materials to form the air gap magnetic field, and the use of inorganic  shell stator cores, with large temperature gradients and high heat dissipation efficiency,  have the following characteristics:

◆Compact structure, high power density;

◆Small moment of inertia, fast response;

◆Ultra-high intrinsic coercivity rare earth   permanent magnet material; strong resistance  to demagnetization; ◆Almost constant torque output in the entire   speed range;

◆Low-speed torque ripple is small; high   balance accuracy, stable high-speed   operation;

◆Low noise, low vibration; fully sealed   design; high cost performance.


Product Parameters

NEMA31 SERVO MOTOR SPECIFICATIONS

NEMA31 SERVO MOTOR SPECIFICATIONS

Product Application

NEMA 31 Servo Motor Usage Scenarios

Servo Motor Use Scene
