In the world of automation, robotics, and precision engineering, motors play a pivotal role in translating electrical energy into mechanical motion. Among the many types of motors available, stepper motors and servo motors stand out as two of the most commonly used options for applications requiring precise control. While both serve similar purposes in many contexts, their underlying principles, performance characteristics, and ideal use cases differ significantly. This blog post dives deep into the comparison between stepper motors and servo motors, exploring their mechanics, advantages, disadvantages, and practical applications. By the end, you'll have a clear understanding of when to choose one over the other for your project.
A stepper motoris an electromechanical device that converts electrical pulses into discrete mechanical movements. Unlike traditional motors that rotate continuously when powered, stepper motors move in precise increments or "steps." Each step corresponds to a fixed angular rotation, typically ranging from 0.9° to 1.8° per step in common models, allowing for 400 to 200 steps per full revolution.
Stepper motors operate using a series of electromagnetic coils arranged around a central rotor. The rotor is typically a permanent magnet or a soft iron core with teeth that align with the stator's coils. By energizing the coils in a specific sequence, the rotor moves one step at a time. This stepping action is controlled by a driver circuit that sends pulses to the motor, dictating the speed and direction of rotation.
Permanent Magnet Stepper Motors: Use a magnetized rotor for higher torque.
Variable Reluctance Stepper Motors: Rely on a non-magnetized rotor aligning with energized stator coils.
Hybrid Stepper Motors: Combine features of the above two for improved performance, making them the most common type today.
Open-Loop Control: Stepper motors do not require feedback systems to track position, as the number of pulses directly correlates to the rotor's position.
High Torque at Low Speeds: They excel at delivering consistent torque when stationary or moving slowly.
Step Accuracy: Movement is predictable and repeatable, with minimal cumulative error.
A servo motor is a rotary actuator designed for precise control of angular position. Unlike stepper motors, servo motors are typically built around a continuous-rotation DC or AC motor paired with a feedback system. The term "servo" refers to the closed-loop control mechanism that ensures the motor reaches and maintains a desired position.
Motor: Usually a DC brushed or brushless motor, though AC servos are common in industrial settings.
Feedback Device: Often an encoder or potentiometer that monitors the motor's position or velocity.
Controller: A circuit that compares the desired position (set by an input signal) with the actual position (from the feedback device) and adjusts the motor accordingly.
The most common control method for hobbyist servo motors is pulse-width modulation (PWM), where the width of the pulse determines the target angle (e.g., 0° to 180°). In industrial servo motors, more sophisticated controllers handle complex motion profiles.
Closed-Loop Control: Feedback ensures high accuracy and adaptability to external disturbances.
High Speed and Torque: Servo motors perform well across a wide range of speeds, with peak torque at higher RPMs.
Dynamic Response: They can quickly adjust to changes in load or position demands.
To understand the practical differences between stepper motors and servo motors, let’s break down their comparison across several critical dimensions: precision, control, torque, speed, cost, complexity, and applications.
Stepper Motors: Stepper motors are inherently precise due to their step-based movement. For example, a motor with 1.8° steps offers 200 distinct positions per revolution. Microstepping—dividing each step into smaller increments—can further enhance resolution, achieving accuracies down to fractions of a degree. However, without feedback, they can lose steps under heavy loads or high speeds, leading to positional errors.
Servo Motors: Servo motors excel in accuracy thanks to their closed-loop feedback. The encoder continuously monitors the shaft position, correcting any deviation from the target. This makes servos less prone to errors, even under varying conditions, though their precision depends on the quality of the feedback system.
Servo motors, for their ability to maintain accuracy under dynamic conditions.
Stepper Motors: Operate in an open-loop system, meaning no feedback is required. This simplifies the setup—connect a driver, send pulses, and the motor moves. However, if the motor stalls or skips steps, the system won’t know unless external sensors are added.
Servo Motors: Rely on a closed-loop system, integrating a feedback loop with a controller. This increases complexity but ensures reliability, as the motor adjusts itself to match the commanded position.
Stepper motors for simplicity; servo motors for reliability.
Stepper Motors: Provide maximum torque at low speeds or when stationary (holding torque), making them ideal for applications like 3D printers or CNC machines where precise positioning at rest is critical. Torque decreases significantly as speed increases.
Servo Motors: Offer high torque across a broader speed range, with peak performance at higher RPMs. They’re better suited for dynamic tasks, such as robotic arms that need to lift and move quickly.
Depends on the application—steppers for low-speed holding, servos for high-speed operation.
Stepper Motors: Limited in speed due to their step-by-step nature. At high speeds, they lose torque and may miss steps, typically capping out at a few hundred RPM in practical use.
Servo Motors: Designed for higher speeds, often exceeding thousands of RPM, depending on the motor type. Their feedback system ensures smooth operation even at these velocities.
Servo motors, for superior speed performance.
Stepper Motors: Generally cheaper and easier to implement. A basic stepper motor, driver, and microcontroller can cost as little as $20-$50, with minimal wiring and programming.
Servo Motors: More expensive due to the added components (feedback devices, sophisticated controllers). A hobby servo might cost $10-$20, but industrial servos can run hundreds or thousands of dollars.
Stepper motors, for affordability and ease of use.
Stepper Motors: Consume power continuously to hold position, even when stationary, as the coils remain energized. This can lead to heat buildup and inefficiency in static applications.
Servo Motors: More efficient in dynamic scenarios, as they only draw power proportional to the load and movement. When idle, they typically use minimal energy.
Simple and cost-effective design.
Excellent for precise positioning without feedback.
High holding torque at low speeds.
Reliable in predictable, low-speed environments.
Limited speed and torque at higher RPMs.
Prone to step loss without feedback.
Inefficient power usage when holding position.
Can be noisy due to step vibrations.
High accuracy and reliability with feedback.
Superior speed and torque across a wide range.
Adaptable to changing loads and conditions.
Quieter operation at high speeds.
More complex and expensive setup.
Requires tuning of the control system.
Feedback components can fail, affecting performance.
Less torque at standstill compared to steppers.
3D Printers: Stepper motors drive the precise movement of print heads and build plates, leveraging their step accuracy and holding torque.
CNC Machines: Used for controlling tool positioning in milling and cutting operations.
Camera Autofocus Systems: Small steppers adjust lens positions with fine increments.
Textile Machines: Control thread feed and needle positioning in sewing or knitting machines.

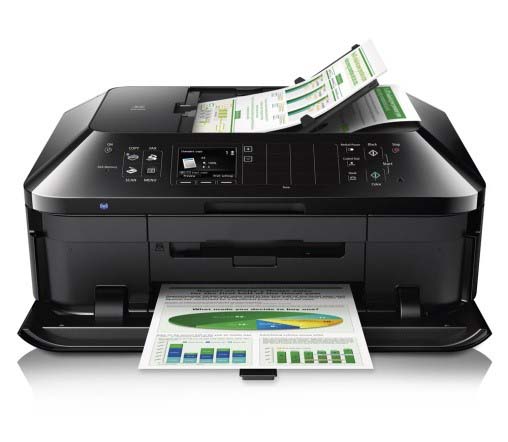

Printers Printheads, Paper Feed, Scan Bar

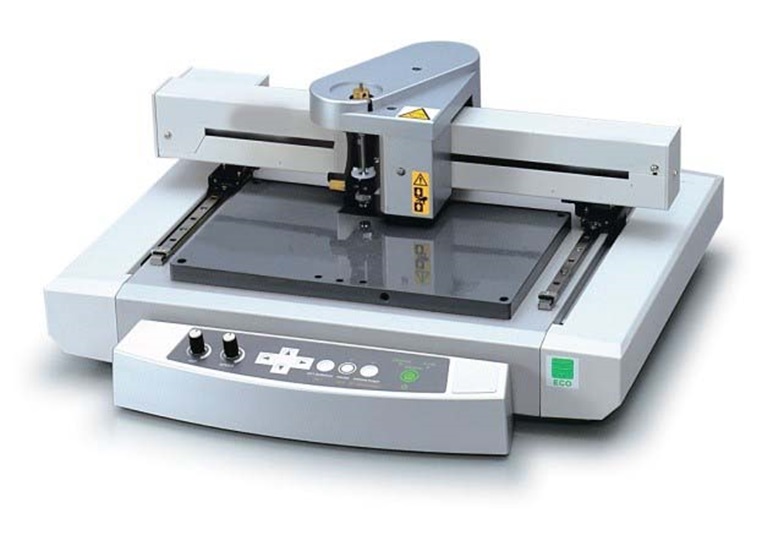

Engraving Machines XY Table Motion

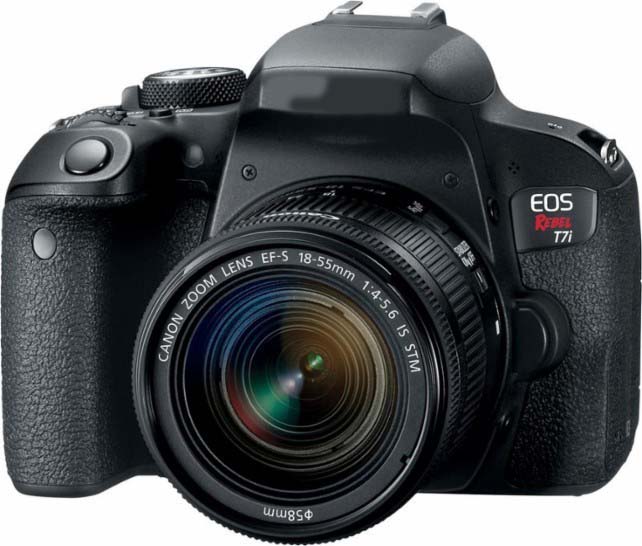

DSLR Cameras Aperture Focus Regulation

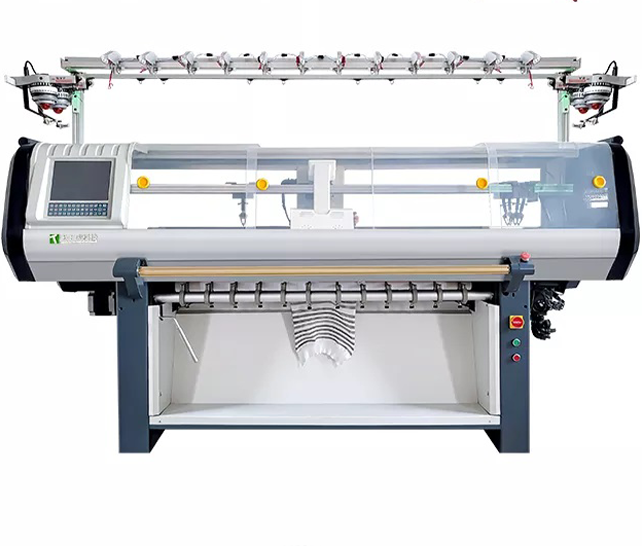

Knitting Machine
Robotics: Servo motors power joints in robotic arms, providing fast, accurate motion.
Industrial Automation: Drive conveyor belts, assembly lines, and packaging systems with dynamic control.
RC Vehicles: Hobby servos steer remote-controlled cars, planes, and boats.
Aerospace: Adjust control surfaces like flaps and rudders in aircraft.

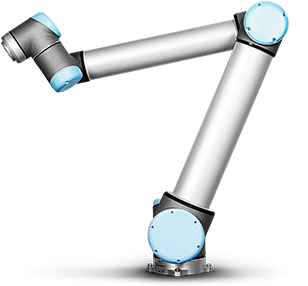

Robots Arms, End Effectors

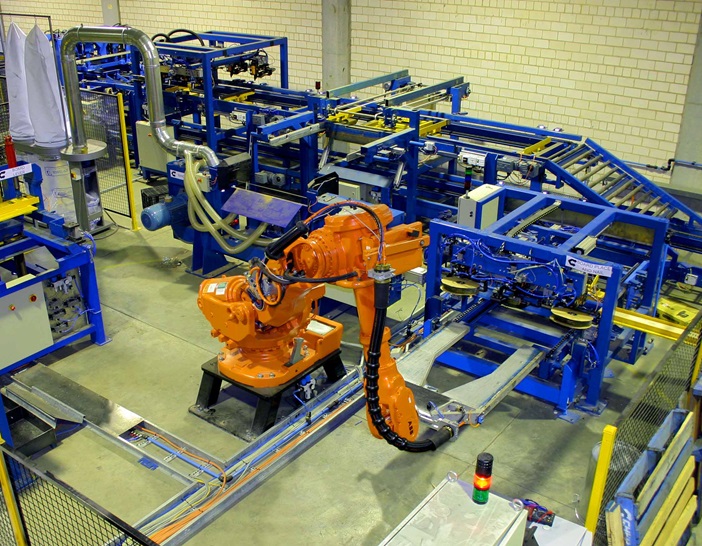

Industrial Automation

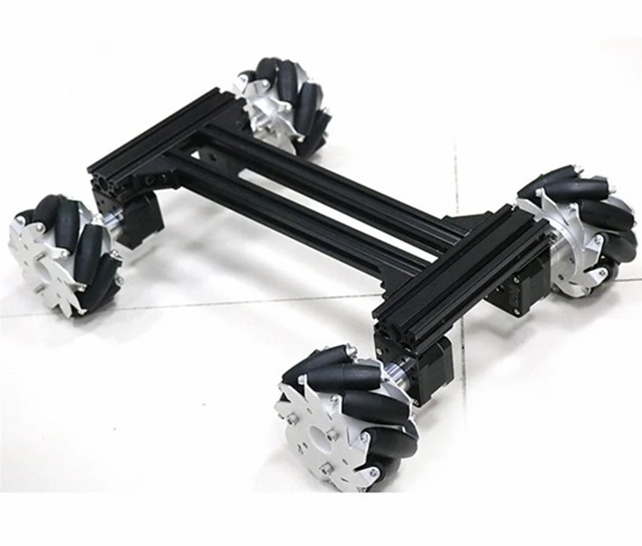

100mm mecanum wheel 4wd car chassis with 4pcs stepper motor
Stepper Motor for Aerospace
The decision to use a stepper motor or a servo motor depends on your project’s requirements. Here’s a quick guide:
You need low-cost, precise positioning at low speeds.
Your application doesn’t require high-speed motion.
Simplicity and minimal maintenance are priorities.
Example: A DIY 3D printer or a small CNC router.
You need high speed and dynamic response.
Accuracy under varying loads is critical.
Your budget allows for a more complex system.
Example: A robotic arm or an industrial conveyor system.
In a typical 3D printer, four stepper motors control the X, Y, Z axes and the extruder. The open-loop system keeps costs low, and the step accuracy ensures layers are deposited precisely. However, if the nozzle jams, the motor might skip steps, misaligning the print—a limitation overcome by adding sensors in high-end models.
A six-axis robotic arm in a factory uses servo motors for each joint. The closed-loop control allows the arm to lift varying weights, adjust to resistance, and move at high speeds—tasks stepper motors couldn’t handle efficiently due to speed and torque constraints.
Hybrid Systems: Some modern systems combine stepper motors with encoders, blending open-loop simplicity with closed-loop reliability.
Smart Controllers: AI-driven controllers optimize servo performance, reducing tuning time.
Miniaturization: Both motor types are shrinking for use in wearables and micro-robotics.
Stepper motors and servo motors each bring unique strengths to the table. Stepper motors shine in low-speed, high-precision tasks with a straightforward setup, while servo motors dominate in high-speed, adaptable applications requiring feedback. Your choice hinges on factors like budget, speed, precision needs, and system complexity. Whether you’re building a hobby project or designing an industrial machine, understanding these differences ensures you pick the right tool for the job.
So, next time you’re faced with a motor-driven project, ask yourself: Do I need simplicity and precision at rest, or speed and adaptability in motion? The answer will guide you to either a stepper or a servo—and a successful outcome.
