86 HB Hybrid Stepper Motor

Hybrid Stepper Motor

HOLRY Hybrid Stepper Motor manufacturer


HOLRY Hybrid Stepper Motor combines the advantages of both permanent magnet and variable reluctance stepper motors, delivering high positioning accuracy, stable operation, and excellent torque performance. With advanced magnetic circuit design and high-quality rare-earth magnetic materials, the motor provides high torque at low speeds and smooth motion at high speeds.

HOLRY stepper motors are widely used in CNC machines, 3D printers, automation equipment, medical instruments, textile machinery, and robotics. Compact in structure and fast in response, they offer long service life and compatibility with various driver systems, making them ideal for applications requiring both precise positioning and high-speed motion.


At HOLRY Motor, our core products are hybrid stepper motors, available in both 2-phase and 3-phase configurations. We offer step angles of 0.9°, 1.2°, and 1.8°, along with motor sizes that include NEMA 8, 11, 14, 16, 17, 23, 24, 34, 42, and 52.

HOLRY is committed to providing high-performance, energy-efficient, and reliable motion control solutions, making it a trusted partner in the fields of smart manufacturing and industrial automation.


Hybrid stepper motor Wholesale
nema 8 hybrid stepper motor - 20HB

NEMA 8 Hybrid Stepper Motor

Stepper motor, small size, high torque, low noise, step angle: 1.8°, NEMA8, 20x20mm
Optional: Lead-wires, gearbox, encoder, brake, integrated drivers...
MODEL Rated Current
(A）		 Phase Resistance
(Ω)		 Phase Inductance
(mH)		 Lead Wire
(No.)		 Holding Torque
(N.cm)		 Motor Length
L(mm)		 Rotor Inertia
(g.cm²)		 Motor Weight
(g)
20HB28F02A 0.2 23 7.2 4 1.4 28 2.5 50
20HB28F06A 0.6 3.2 0.9
20HB34F02A 0.2 25 9.2 4 1.8 34 3.2 70
20HB34F06A 0.6 4.5 1.5
20HB40F02A 0.2 32 9.8 4 2.6 40 4.5 82
20HB40F06A 0.6 5.8 1.8



nema 11 hybrid stepper motor

NEMA 11 Hybrid Stepper Motor

Stepper motor, small size, high torque, low noise, step angle: 1.8°, NEMA11, 28x28mm
Optional: Lead-wires, gearbox, encoder, brake, integrated drivers...
MODEL Rated Current
(A）		 Phase Resistance
(Ω)		 Phase Inductance
(mH)		 Lead Wire
(No.)		 Holding Torque
(N.cm)		 Motor Length
L(mm)		 Rotor Inertia
(g.cm²)		 Motor Weight
(g)
28HB31F068B 0.68 5.6 3.4 4 6 31 9 110
28HB31F095B 0.95 2.8 2.3
28HB44F068B 0.68 6.8 4.9 4 9 44 12 140
28HB44F095B 0.95 4.7 3.7
28HB51F068B 0.68 11 9.5 4 12 51 18 180
28HB51F095B 0.95 5.6 5

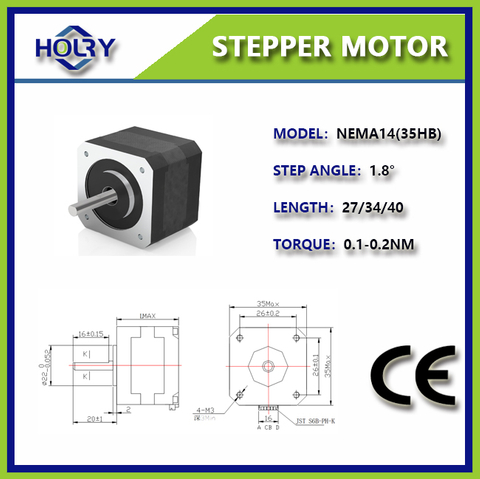

NEMA 14 Hybrid Stepper Motor

NEMA 14 Hybrid Stepper Motor

Stepper motor, small size, high torque, low noise, step angle: 0.9° or 1.8°, NEMA14, 35x35mm
Optional: Lead-wires, gearbox, encoder, brake, integrated drivers...
MODEL Rated Current
(A）		 Phase Resistance
(Ω)		 Phase Inductance
(mH)		 Lead Wire
(No.)		 Holding Torque
(N.cm)		 Motor Length
L(mm)		 Rotor Inertia
(g.cm²)		 Motor Weight
(g)
35HW27F05AB 0.5 20 19 4 10 27 11 110
35HW27F08AB 0.8 5.5 5.8
35HW34F06AB 0.6 9 11 4 13 34 13 180
35HW34F10AB 1 3.5 5.5
35HW40F06AB 0.6 16.3 18.8 4 18 40 22 200
35HW40F06AB 1 6.25 6.8
35HW45F10AB 1 7 9.5 4 30 45 26 230



42HB NEMA 17 Hybrid Stepper Motor

NEMA 17 Hybrid Stepper Motor

Stepper motor, high torque, low noise, smooth type, step angle: 1.8° or 0.9°, NEMA17, 42x42mm
Optional: Lead-wires, gearbox, encoder, brake, integrated drivers...
MODEL Rated Current
(A）		 Phase Resistance
(Ω)		 Phase Inductance
(mH)		 Lead Wire
(No.)		 Holding Torque
(N.cm)		 Motor Length
L(mm)		 Rotor Inertia
(g.cm²)		 Motor Weight
(g)
42HB34F04AB 0.4 33 45 4 24 34 34 200
42HB34F08AB 0.8 6.2 10
42HB34F105B 1.5 1.8 2.4
42HB40F04AB 0.5 8 15 4 35 40 50 220
42HB40F102B 1.2 6 13
42HB40F107B 1.7 1.5 2.5
42HB48F04AB 0.4 20 40 4 45 48 68 280
42HB48F08AB 0.8 9 15
42HB48F105B 1.5 2.8 4.8
42HB34MF06AB 0.6 4.2 4 4 16 34 34 200
42HB34MF04AB 0.4 10 9.5
42HB40MF102AB 1.2 3.3 4 4 26 40 54 220
42HB40MF107AB 1.7 1.65 4
42HB48MF102AB 1.2 3.3 4 4 35 48 68 350
42HB48MF107AB 1.68 1.65 4.1



NEMA 23 Hybrid Stepper Motor - 57HB

NEMA 23 Hybrid Stepper Motor

Stepper motor, 2 or 3 phase, high torque, low noise, smooth type, step angle: 0.9° or 1.2° or 1.8° NEMA23, 57x57mm
Optional: Lead-wires, gearbox, encoder, brake, integrated drivers...
360MODEL Rated Current
(A）		 Phase Resistance
(Ω)		 Phase Inductance
(mH)		 Lead Wire
(No.)		 Holding Torque
(N.cm)		 Motor Length
L(mm)		 Rotor Inertia
(g.cm²)		 Motor Weight
(Kg)
57HB41F105B 1.5 1.8 4 4 0.4 41 120 0.45
57HB51F105B 1.5 5 13 0.7 51 275 0.65
57HB56F3B 3 1.8 2.5 1 56 300 0.7
57HB56F4B 4 0.5 1.5 4 1
57HB64F3B 3 1.7 4.8 1.4 64 360 0.85
57HB64F4B 4 0.6 1.9 1.4
57HB76F105B 1.5 4.5 15 4 1.9 76 480 1.1
57HB76F208B 2.8 1.2 5 1.9
57HB76F4B 4 0.6 2.2 1.9 76 480 1.1
57HB82F3B 3 0.7 2.3 4 2 82 530 1.2
57HB82F4B 4 0.6 2.3 2
57HB100F4B 4.2 0.75 3 4 2.5 82 530 1.2
57HB115F4B 4.2 0.8 3.8 2.8
57HB41MF208B 2.8 0.7 2.2 4 0.35 41 120 0.47
57HB56MF208B 2.8 0.9 4.5 4 1 56 300 0.7
57HB76MF208B 2.8 1.13 5.6 4 1.4 78 420 1.1
57HB82MF402B 4.2 0.55 2.2 4 1.5 82 440 1.2
57HB100MF402B 4.2 0.75 3 4 1.8 100 680 1.2
57HB563510 4 0.9 4.5 3 1 56 300 0.7
57HB763520 4 1.13 5.6 3 1.4 78 420 1.1



NEMA 24 Hybrid Stepper Motor - 60HB

NEMA 24 Hybrid Stepper Motor

Stepper motor, high torque, low noise, smooth type, step angle: 1.8° NEMA24, 60x60mm
Optional: Lead-wires, gearbox, encoder, brake, integrated drivers...
MODEL Rated Current
(A）		 Phase Resistance
(Ω)		 Phase Inductance
(mH)		 Lead Wire
(No.)		 Holding Torque
(N.cm)		 Motor Length
L(mm)		 Rotor Inertia
(g.cm²)		 Motor Weight
(g)
60HB56F3AB 3 1.3 14 4 1.4 56 350 0.8
60HB56F3PJ 3 0.8 1.6 1
60HB56F1AB 1 12 15 4 1.2
60HB87F3AB 3 1.5 6.8 2.5 87 780 1.4
60HB87F2AB 2 3.2 15 4 2.3
60HB87F5AB 5 0.65 3 2.5
60HB100F4PJ 4.2 0.9 3.5 4 3.2 45 26 230
60HB115F5AB 5 0.9 2.5 3.6 3.6



86HB NEMA 34 Hybrid Stepper Motor

NEMA 34 Hybrid Stepper Motor

Stepper motor, low rotor inertia, large torque, fast acceleration, 2 or 3 phase, step angle: 1.8° or 1.2°, NEMA34, 86x86mm
Optional: Lead-wires, gearbox, encoder, brake, integrated drivers...
MODEL Rated Current
(A）		 Phase Resistance
(Ω)		 Phase Inductance
(mH)		 Lead Wire
(No.)		 Holding Torque
(N.cm)		 Motor Length
L(mm)		 Rotor Inertia
(g.cm²)		 Motor Weight
(g)
86HB65F4AB 4 0.55 3.5 4 3 65 850 2
86HB75F5PJ 5 0.75 7 4 4 75 1050 2.3
86HB80F5PJ 5.5 0.45 3 4 4.5 80 1250 2.5
86HB98F5PJ 5 0.6 5 4 6 98 1550 3
86HB113F5PJ 5 0.6 5 4 7 113 1600 3.6
86HB118F6PJ 6 0.6 6.5 4 8.5 118 1800 3.8
86HB127F6PJ 6 0.6 5.5 4 8.9 127 2200 4.5
86HB156F6PJ 6 0.7 3.5 4 10 156 2500 5
86HB3423-65 4 1 4 3 2.3 65 1100 2
86HB3636-98 5.8 0.8 3 3 3.6 98 2320 3
86HB3645-113 6 0.55 2.1 3 4.5 113 2320 3.8
86HB3555-127 5.2 2.5 13.5 3 8 127 3300 4.5
86HB350C-156 4 3 15 3 10 156 3600 5



NEMA 42 Hybrid Stepper Motor - 110HB

NEMA 42 Hybrid Stepper Motor

Stepper motor, low rotor inertia, large torque, fast acceleration, 2 or 3 phase, step angle: 1.8° or 1.2°, NEMA42, 110x110mm
Optional: Lead-wires, gearbox, encoder, brake, drivers...
MODEL Rated Current
(A）		 Phase Resistance
(Ω)		 Phase Inductance
(mH)		 Lead Wire
(No.)		 Holding Torque
(N.cm)		 Motor Length
L(mm)		 Rotor Inertia
(g.cm²)		 Motor Weight
(g)
110HB99F6PJ 5.5 0.9 12 4 8 99 5000 5
110HB115F6PJ 6 0.8 6 4 12 115 8000 6.5
110HB150F6PJ 6.8 0.8 15 4 20 150 10000 8.4
110HB201F6PJ 6 0.67 12 4 28 201 16200 11.7
110HB3512-126 6 1 15 3 12 129 5000 5
110HB3516-168 6.8 0.8 15 3 16 168 10000 8.4
110HB3521-201 6 0.67 12 3 21 201 16200 11.7



NEMA 52 Hybrid Stepper Motor - 130

NEMA 52 Hybrid Stepper Motor

Stepper motor, low rotor inertia, large torque, fast acceleration, 2 or 3 phase, step angle: 1.8° or 1.2°, NEMA52, 130x130mm
Optional: Lead-wires, gearbox, encoder, brake, drivers...
MODEL Rated Current
(A）		 Phase Resistance
(Ω)		 Phase Inductance
(mH)		 Lead Wire
(No.)		 Holding Torque
(N.cm)		 Motor Length
L(mm)		 Rotor Inertia
(g.cm²)		 Motor Weight
(g)
130HB3523-170 5 0.95 9.5 3 23 170 25 13
130HB3530-199 5 1.1 11.3 3 30 199 30 16
130HB3536-226 5 1.3 13.1 3 36 226 35 18
130HB3550-282 5 1.7 18 3 50 282 45.5 22




What Is Hybrid Stepper Motor?

Hybrid Stepper Motor is combination of variable reluctance and permanent magnet type motors.  The rotor of a hybrid stepper motor is axially magnetized like a permanent magnet stepper motor, and the stator is electromagnetically energized like a variable reluctance stepper motor.



What sets us apart from other Hybrid Stepper Motor manufacturers is our extensive ability to Optimize and Customize our Hybrid Stepper Motors for your specific application needs. We can ensure that our hybrid stepper motors are optimized to deliver the required performance for your specific application, whether it’s increasing torque at a specific speed range, reducing noise or vibration, or optimizing for minimal power consumption. Furthermore, we can customize the motor’s envelope in a variety of ways to ensure proper and native fit within your assembly.



Hybrid refers to a combination or mixture. Hybrid stepper motors or HB stepper motors combine the features of Variable Reluctance Stepper Motors and Permanent Magnet Stepper Motor. The shaft of a stepper motor rotates in discrete step increments when electrical command pulses are applied to it in the proper sequence. For precise positioning, Hybrid stepper motors are the best choice. All kinds of control signals, such as digital, analog, communication, etc, are widely used in a variety of applications for position and speed. A variety of HB motor types are available,nema 8 hybrid stepper motor,nema 11 hybrid stepper motor,nema 14 hybrid stepper motor,nema 17 hybrid stepper motor,nema 23 hybrid stepper motor,nema 24 hybrid stepper motor,nema 34 hybrid stepper motor.

HOLRY Hybrid Stepper Motor
Hybrid Stepper Motor

Hybrid Stepper Motors Manufacturer

HOLRY' provides excellent performance in areas of torque, speed, and step resolution.For hybrid stepper motors, step angles typically range from 200 to 400 steps per revolution. HOLRY' unipolar and bipolar hybrid stepper motors include standard hybrid stepper motors, PowerPlus hybrid stepper motors, high precision hybrid stepper motors, and smooth hybrid stepper motors.nema 42 hybrid stepper motor.



HOLRY Hybrid stepper motors for sale, As Stepper Motors Manufacturer & Supplier ,Factory Direct Sales. At present, they are mainly exported to more than 60 countries such as USA, Italy, Germany, Brazil, Russia, Pakistan, etc.
