CNC Spindle Motor for Wood Metal Milling Air Cooled 1.5kw 220V 24000RPM High Quality Spindle Motor

It is mainly used in wood, aluminum, stone, hardware, glass, PVC and other industries. It has the advantages of fast speed, small volume, lightness, low material consumption, low noise and low vibration. It has been paid more and more attention and applied by relevant industries.
  • BHFB-82-1.5

  • HOLRY

model:
collect:
flange:
Availability:
Quantity:

Product Description

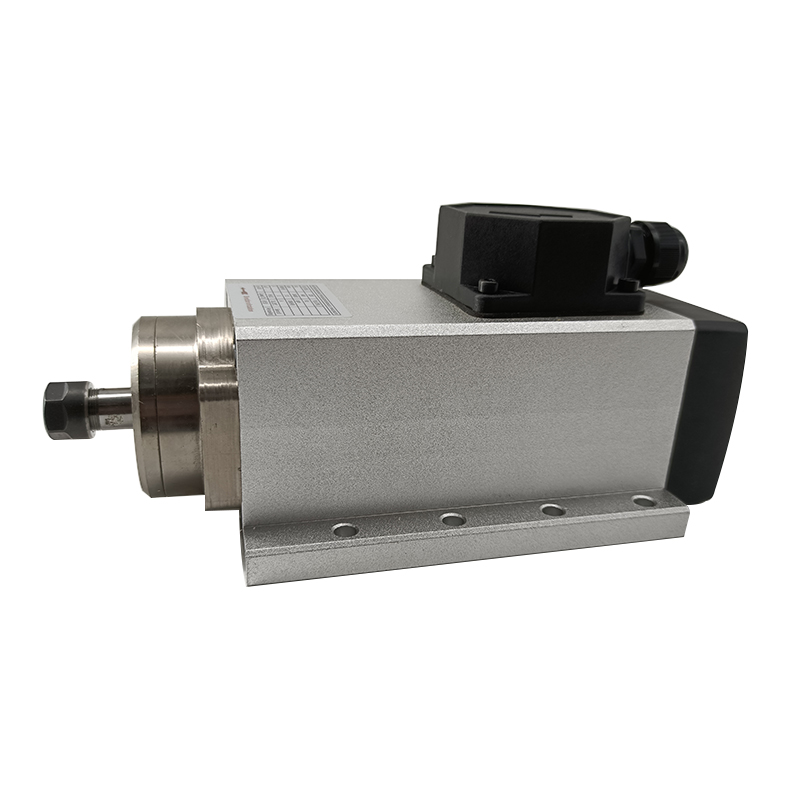

1.5KW spindle motor


1.5kw spindle motor


Application

Milling,Engraving,Dilling in all kinds of CNC Router machine.

Characteristics

1. Save costs and time-- -With flanges, customers can have fewer mountingplates and are more convenient

2. With high precision ---- Adopt ER series collet nut, has the unique character-istics of high precision.

3. P4 grade angular contact bearings or ceramic ball bearings are used. Withsuch bearings, the strength and stiffness of electric spindles are greatly

improved and the RPM can reach 24000r/min. lt can provide strong support forhigh efficiency and high precision processing of CNC.

4. High precision dynamic balancing testing is conducted on all rotable parts,with the tolerance value of less than G0.4.

5. The airtight shaft bracket made of extruded aluminum raises the protectionclass of electric spindles to be IP50 and protects internal parts from the threatof dust.

Video of 1.5kw spindle motor

Introduction of 1.5kw spindle motor


As the name suggests, the 1.5kw spindle has a power of 1.5kw. In this link, we introduce the 1.5KW air-cooled spindle, which is also equipped with a flange. Its detailed parameters can be seen in our product parameter description, or you can contact us for more detailed product information, and we can also support customized services. The 1.5 kW air-cooled spindle motor is a type of motor commonly used in CNC machine tools, wood milling machines, and other industrial applications that require high speed rotation and precision.

1. Spindle motor

The principle of air-cooled spindle control can control the start and stop, speed, feed and other parameters of the spindle motor. The three parts of spindle motor, inverter and controller are the important parts of the air-cooled control system.

2. Inverter

The drive of the spindle motor is the core component of the spindle rotation, and the power and speed it generates can directly affect the machining efficiency and precision of the machine tool.

The frequency converter is a device used to adjust the speed of the spindle motor. It controls the output speed of the motor by changing the input voltage and frequency of the motor. The controller is the device responsible for controlling the start, stop and speed of the inverter and the spindle motor, which is usually implemented by a PLC or CNC control system.

3. Controller

In the air-cooled spindle control system, the frequency converter usually receives the speed signal from the controller, and controls the speed of the spindle motor by adjusting the voltage and frequency. At the same time, the frequency converter can also monitor the operating status of the spindle motor, such as current, temperature, speed and other parameters, and prevent motor damage or failure through protection functions.

The controller usually issues corresponding speed and feed commands according to the requirements of the processing technology to control the operation of the spindle motor. During processing, the controller will also monitor the running status of the spindle motor and make adjustments as needed to ensure processing quality and efficiency.




Product parameters

Hb2543db54ba44e5d803b59bceb1add68d

1500w spindle motor

Application industry

Milling,Engraving,Dilling in all kinds of CNC Router machine.

Application industry

With the development of science and technology, the progress and function of the spindle motor, the application of the spindle motor in the fields of CNC machine tools is becoming more and more extensive. We can usually use 1.5KW air-cooled spindle for milling, engraving, drilling in various CNC Router machines. Because this kind of spindle has high speed and high precision, it can meet different types of processing requirements, such as:

1. Woodworking processing

1.5KW air-cooled spindle can be used for milling, carving, drilling and other processing of wood, such as making furniture, carving doors and windows, etc.

2. Metal processing

1.5KW air-cooled spindle can be used for drilling, milling and cutting metal materials, such as making metal crafts, mechanical parts, etc.

3. Plastic processing

1.5KW air-cooled spindle can be used for milling, cutting and engraving of plastic plates, such as making parts and models.

4. Stone processing

1.5KW air-cooled spindle can be used for stone cutting, carving and milling, such as making tombstones and sculptures.


RFQ

Characteristics

1. Save costs and time-- -With flanges, customers can have fewer mountingplates and are more convenient

2. With high precision ---- Adopt ER series collet nut, has the unique character-istics of high precision.

3. P4 grade angular contact bearings or ceramic ball bearings are used. Withsuch bearings, the strength and stiffness of electric spindles are greatly

improved and the RPM can reach 24000r/min. lt can provide strong support forhigh efficiency and high precision processing of CNC.

4. High precision dynamic balancing testing is conducted on all rotable parts,with the tolerance value of less than G0.4.

5. The airtight shaft bracket made of extruded aluminum raises the protectionclass of electric spindles to be IP50 and protects internal parts from the threatof dust.


H337989a838734fbf8c967920d04a476eq
