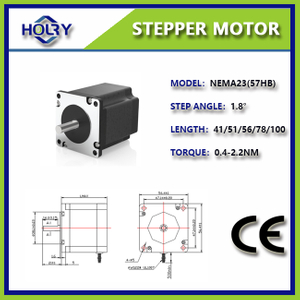

NEMA 23 57MM GEARBOX STEPPING MOTOR-HOLRY

General technical characteristics:
1. The stepping motor is used in low-speed occasions---the speed does not exceed 1000 revolutions per minute, (6666PPS at 0.9 degrees), preferably between 1000-3000PPS (0.9 degrees), and it can be used here by a decelerating device. At this time, the motor has high working efficiency and low noise;
2. The stepping motor is best not to use the full-step state, the vibration is large in the full-step state;
3. The voltage value in the motor specification is not the driving voltage volt value. The specific driving voltage can be selected according to the stepper driver (recommendations: 42 and below motors use 12-24V, 57 motors use DC 24V-48V, 86 use DC 48-80V, 110 motor adopts higher than DC 80V)
4. For loads with large moments of inertia, a large frame size motor should be selected;
  • 57HB
  • HOLRY
Motor Torque:
Stage:
Reducer:
Motor Lenght:
Availability:
Quantity:

product description

Technique Specification


stepper motor nema 17 423

Model

Step

(°)

Length

L2(mm)

Rate

Voltage

(V)

Rate

Current

(A)

Phase

Resistance

(J2)

Phase

Inductance

(mH)

Holding

Torque

(kg.cm)

Wire

(NO.)

Motor

Weight

(kg)


57HB41F2AJ

1.8

41

2.0

2.0

1.0

1.7

5

4

1.4

57HB56F3AJ

1.8

56

3.0

3.0

1.0

3.0

9

4

1.7

57HB64F2SG

1.8

64

7.0

2.0

3.6

12

12.6

4

1.8



57HB78F105AJ

1.8

78

6.8

1.5

4.5

15

13

4

1.9



57HB78F3SAJ

1.8

78

2.7

3

0.9

3

15

4

1.9




Available reducer data

Reduction ratio

3.6,4.25

13,15,18

47,55,65,77

Length LI

mm

31

41

63.1

Rated torque

Nm

9

15

24

Maximum load

Nm

26

44

71

Efficiency

%

90

81

73

Backlash

arcmin

<60

<75

<90


1STEPPER MOTOR NEMA17 42


Product video

FAQ

FAQ

1. Do you have online contact info?

A1: Yes, whatsapp is +86 13646117381

2. How can we know the product quality?

A2: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.

3. Is this your final price? May i have the discount?

A3: Our price is the factory price, and if your quantity is larger, we will allow the discount for you.

4.Is there cheap shipping cost to import to our country?

A4: Yes, we have our regular shipping company, they have very good price.

5. Can we visit your factory?

A5: Yes welcome warmly. No. 295, Fumin Road, Lucheng Town, Qishuyan, Changzhou City, Jiangsu Province, China.


6.What is the Warranty for your products?

A6: All products product warranty for one year, free service for 10 years.
