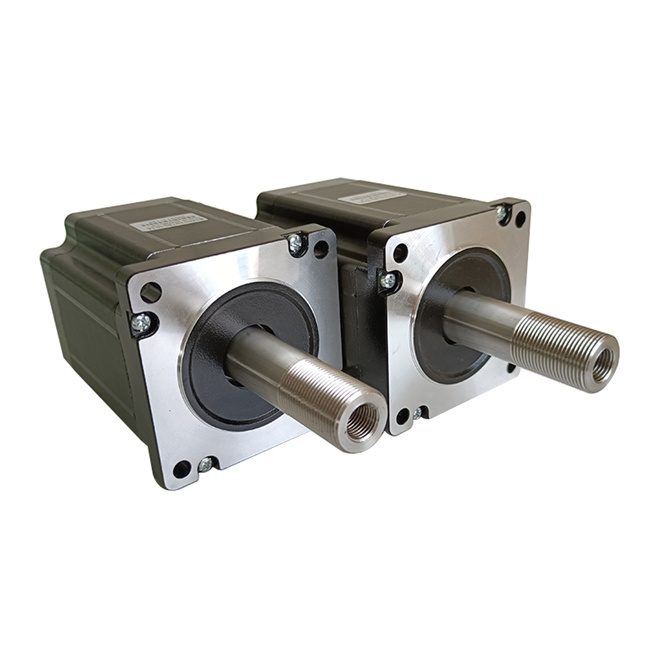

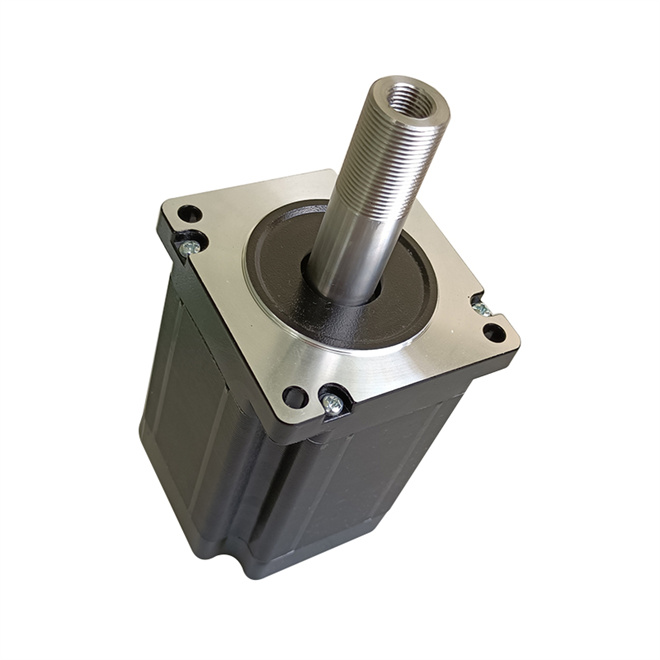

Nema 34 86mm Gearbox Stepper Motor

General technical characteristics:
1. The stepping motor is used in low-speed occasions---the speed does not exceed 1000 revolutions per minute, (6666PPS at 0.9 degrees), preferably between 1000-3000PPS (0.9 degrees), and it can be used here by a decelerating device. At this time, the motor has high working efficiency and low noise;
2. The stepping motor is best not to use the full-step state, the vibration is large in the full-step state;
3. The voltage value in the motor specification is not the driving voltage volt value. The specific driving voltage can be selected according to the stepper driver (recommendations: 42 and below motors use 12-24V, 57 motors use DC 24V-48V, 86 use DC 48-80V, 110 motor adopts higher than DC 80V)
4. For loads with large moments of inertia, a large frame size motor should be selected;
  • 86HB
  • HOLRY
Motor Torque:
Stage:
Reducer:
Motor Angle:
Availability:
Quantity:

stepper motor nema 34 description


A Nema 34 stepper motor is a stepper motor with a 3.4 x 3.4 inch (86 x 86 mm) faceplate. Nema 34 high torque stepper motors deliver great value with no quality sacrifice. These motors are engineered to provide the highest possible torque but minimize vibration and audible noise. A wide range of motor windings and stack lengths are readily available, or the motors can be customized to meet your machine requirements.




stepper motor nema 34 Technique Specification



stepper motor nema 34 - 86mm - HOLRY



Model

Step

(°)

Motor

Length

L2(mm)

Rate

Voltage

(V)

Rate

Current

(A)

Phase

Resistance

(Q)

Phase

Inductance

(mH)

Holding

Torque

(N.M)

Lead

Wire

(NO.)

Motor

Weight

(kg)

86HB80F205AJ

1.8

80

2.5

5.5

0.45

3

4.5

4

5

86HB98F5AJ

1.8

98

2.5

5

0.5

3.5

5.0

4

5.5

86HB113F4AJ

1.8

113

3.0

4.0

0.6

5.0

6.5

4

6.2

86HB156F5AJ

1.8

156

4.4

5.5

0.8

7.5

10

4

7.5


Available reducer data


Reduction ratio

4,5, 10

16, 20, 25, 40, 45, 50, 100

Length LI

mm

73

87

Rated torque

Nm

50

80

Maximum load

Nm

100

160

Efficiency

%

96

94

Backlash

arcmin

<15

<25




Nema 34 86mm Gearbox Stepper Motor



Stepper motor appearance dimension drawing and motor shaft out method



Nema 34 stepper motor shaft out method - HOLRY


Drawing download:86-NEMA34.PDF

stepper motor General technical characteristics:


1. The stepping motor is used in low-speed occasions---the speed does not exceed 1000 revolutions per minute, (6666PPS at 0.9 degrees), preferably between 1000-3000PPS (0.9 degrees), and it can be used here by a decelerating device. At this time, the motor has high working efficiency and low noise;
2. The stepping motor is best not to use the full-step state, the vibration is large in the full-step state;
3. The voltage value in the motor specification is not the driving voltage volt value. The specific driving voltage can be selected according to the stepper driver (recommendations: 42 and below motors use 12-24V, 57 motors use DC 24V-48V, 86 use DC 48-80V, 110 motor adopts higher than DC 80V)
4. For loads with large moments of inertia, a large frame size motor should be selected;


stepper motor video




Buy high quality and cost-effective 86MM Gearbox stepper motor nema 34 to HOLRY Motor, we are stepper motor nema 34 manufacturer & supplier & factory.



Quick Details

Warranty:  1year

Place of Origin:  Jiangsu, China

Brand Name:  HOLRY Model Number:  57HB51F3
Type:  Hybrid Motor Length:  51mm
Rated Voltage:  3V Rated Current:  3A
Phase Resistance:  1.1Ω Phase Inductance:  2.8mH
Phase Inductance:  2.8mH Holding Torque:  0.65N.M
Lead Wire:  4NO. Rotor Inertia:  120g.cm²
Motor Weight:  0.45Kg Insulation Class: B


Stepper Motor Supply Ability

  • 10000 Piece/Pieces per Month



    Stepper Motor Packaging & Delivery


    • Port

    • Shanghai

    • Packaging Details

    • Carton with foam inside or as per customer's requirements


Stepper Motor Picture Example


Stepper Motor - HOLRY

Packaging & Delivery

Stepper Motor Picture Example - HOLRY

Stepper Motor - HOLRY

Packaging & Delivery



FAQ

FAQ

1. Do you have online contact info?

A1: Yes, whatsapp is +86 13646117381

2. How can we know the product quality?

A2: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.

3. Is this your final price? May i have the discount?

A3: Our price is the factory price, and if your quantity is larger, we will allow the discount for you.

4.Is there cheap shipping cost to import to our country?

A4: Yes, we have our regular shipping company, they have very good price.

5. Can we visit your factory?

A5: Yes welcome warmly. No. 295, Fumin Road, Lucheng Town, Qishuyan, Changzhou City, Jiangsu Province, China.


6.What is the Warranty for your products?

A6: All products product warranty for one year, free service for 10 years.
