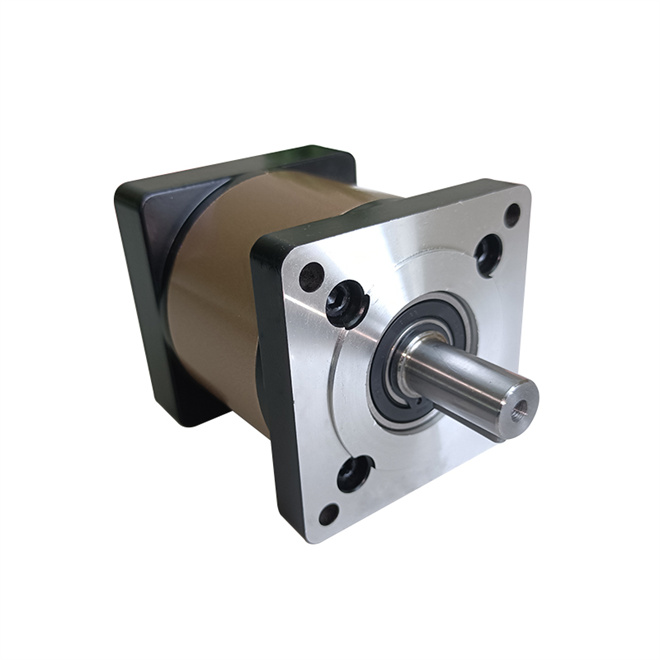

NEMA17 One Stage Planetary Reducer Reduction Ratio1:4/5/10 Rated Input Speed:4000rpm Transmission Efficiency 95%

Planetary reducer is an industrial product with a wide range of uses, which can reduce the speed of the motor while increasing the output torque. Planetary reducer can be used as a supporting component in industries such as lifting, excavation, transportation, and construction.

Model:
NEMA17 42mm Planetary Reducer
Brand:
Holry Motor

Reduction Ratio:	1:4 1:5 1:10
Availability:

Quantity:



Inquire Add to Basket

Product Description

NEMA17 One Stage Planetary Reducer

Reduction Ratio1:4/5/10

China Speed Reducer One Stage NEMA17 42mm Planetary Gearbox, Find details about China Gear Box, Gear Reducer from Speed Reducer Single Stage NEMA17 42mm Planetary Max Output Torque 6N m, Backlash Less Than 15arcmin.

Planetary reducer is an industrial product with a wide range of uses, which can reduce the speed of the motor while increasing the output torque. Planetary reducer can be used as a supporting component in industries such as lifting, excavation, transportation, and construction.

NEMA 17 Planetray Reducer

Product Analysis

NEMA 17 Planetray Reducer Analysis

Planetray Reducer - Product Analysis

Product Parameters

NEMA 17 Planetray Reducer Parameters

Project	Unite	One Stage			Two Stage
Reduction Radio	i	4	5	10	16	20	25	40	50	100
Rated Output Torque	N.m	6	6	3	6	6	6	5	5	3
Stopping Torque	N.m	Three Times The Rated Output Torque
Rated Input Speed	rpm	4000
Maximum Input Speed	rpm	8000
Transmission Efficiency	%	95				90
Back Lash	arcmin	≤15				≤25
Noise Level	dB	≤60				≤55
Lubrication		Synthetic GreaSe
Using Life	h	20000
Body Length	mm	44				54
Weight	Kg	0.25				0.3
Protection Level	IP56
