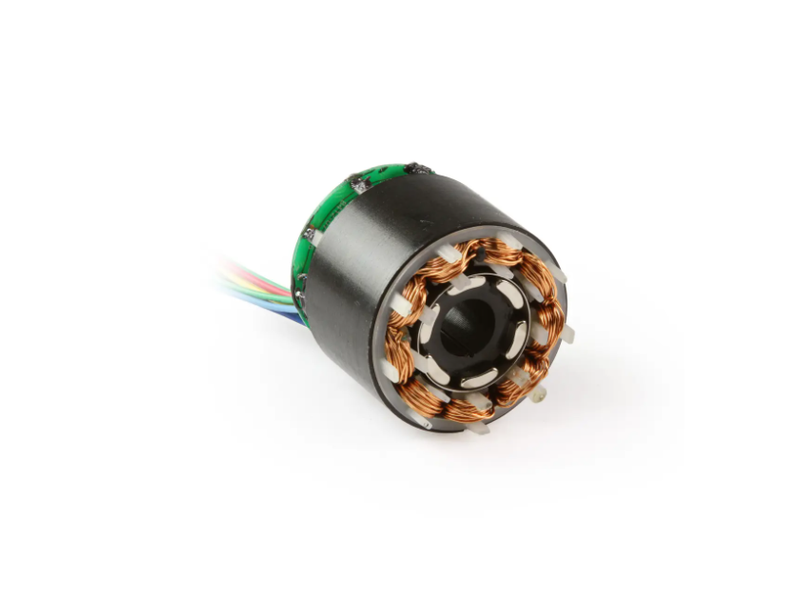

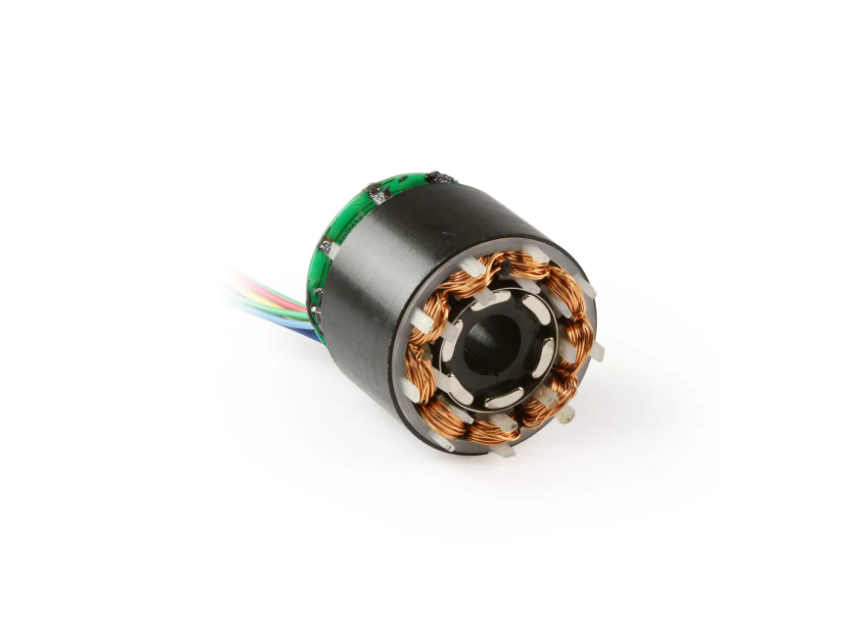

40 Mm Frame Size Frameless Motors

FlexCorePlus Frameless BLDC Torque Motors

Features and Benefits:

• High torque to weight ratio

• Compact & lightweight

• Hall sensor and thermistor available

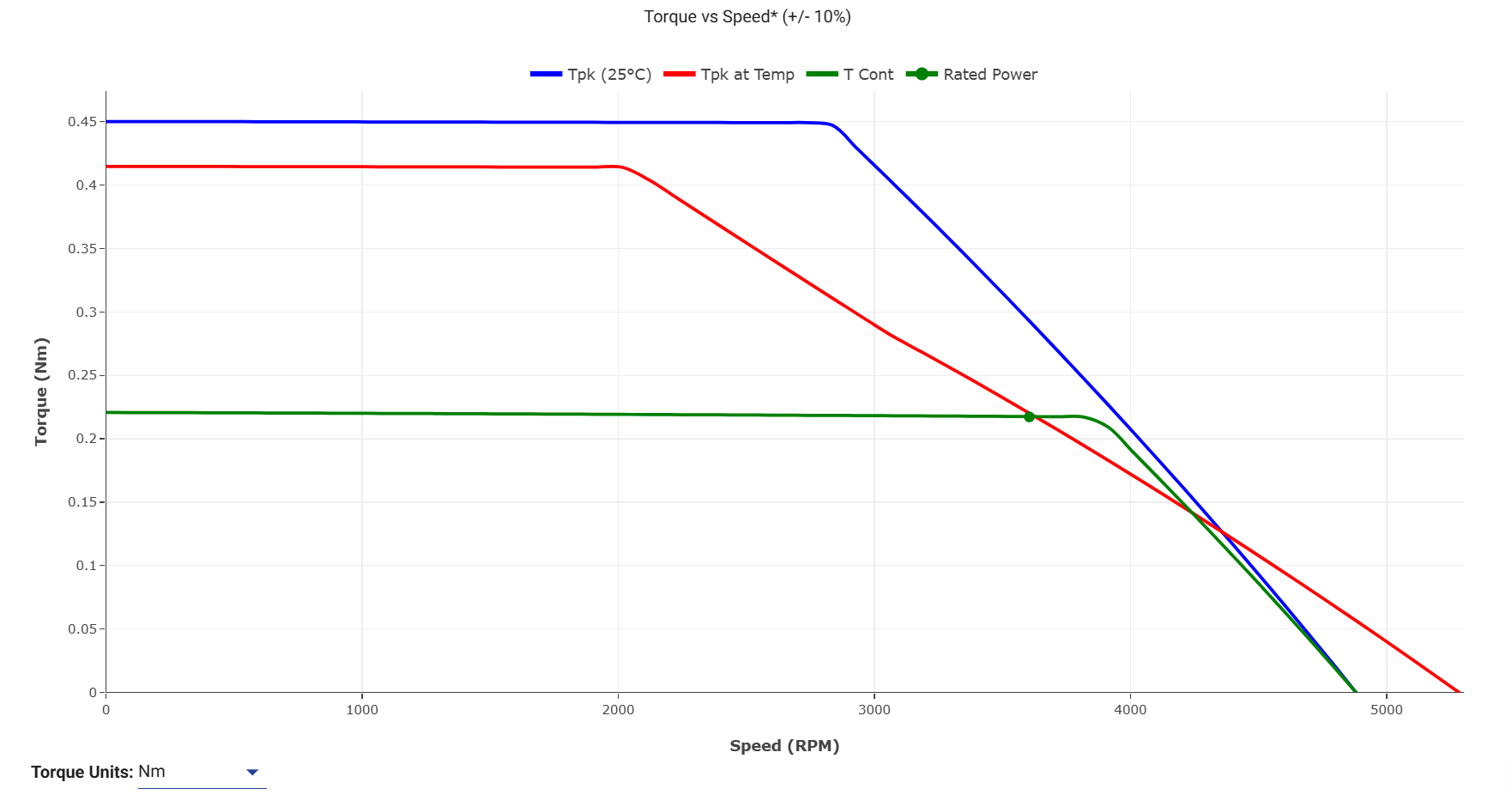

Performance Curves

Operating Specifications

Performance Specifications

Electrical  Specifications

Mechanical Specifications

Dimensions

FCP-040CH025-18A FAQ

What is a 40 mm frame frameless motor?

 40 mm frame frameless motor is a compact brushless motor that consists of a separate rotor and stator assembly with an outer diameter of approximately 40 mm.

 It is designed to be integrated directly into a customer's mechanical system without a housing, shaft, or bearings.

Is FCP-040CH025-18A a housed or frameless motor?

 It’s fully frameless without outer shell, split stator and rotor for customer self-assembly into machinery.

What are the advantages of a 40 mm frameless motor?

The main advantages include high torque density, compact size, low weight, improved efficiency, reduced inertia, and greater flexibility for custom machine designs.

What applications are 40 mm frameless motors commonly used in?

These motors are commonly used in robotics, medical equipment, semiconductor manufacturing systems, aerospace devices, industrial automation, gimbals,

and precision positioning applications.

Does a frameless motor require a motor controller?

Yes. A frameless motor requires a compatible BLDC or servo motor controller to provide commutation, speed regulation, and torque control.

Can a 40 mm frameless motor be used in direct-drive applications?

Yes. Frameless motors are ideal for direct-drive applications because they eliminate the need for gearboxes and other transmission components, resulting in higher precision and efficiency.

Are Hall sensors available for 40 mm frameless motors?

Many 40 mm frameless motors can be configured with optional Hall-effect sensors for rotor position detection and smoother motor control.

What factors should be considered when selecting a 40 mm frameless motor?

Key selection factors include continuous torque, peak torque, operating speed, voltage requirements, available installation space, thermal conditions, and control system compatibility.

Can a 40 mm frameless motor be used in direct-drive applications?

Yes. Frameless motors are ideal for direct-drive applications because they eliminate the need for gearboxes and other transmission components, resulting in higher precision and efficiency.

What factors should be considered when selecting a 40 mm frameless motor?

Key selection factors include continuous torque, peak torque, operating speed, voltage requirements, available installation space, thermal conditions, and control system compatibility.
