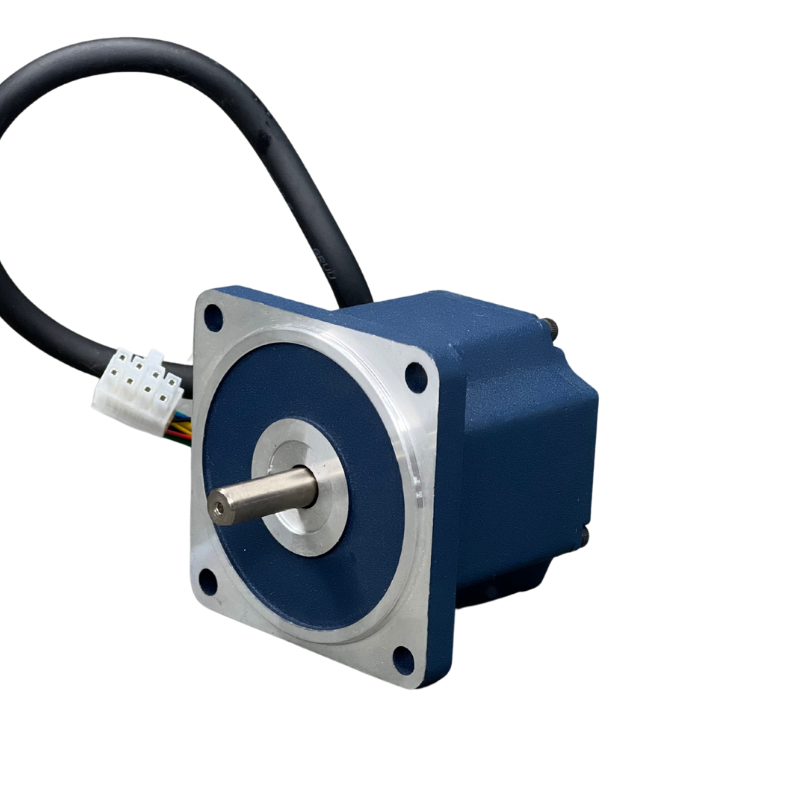

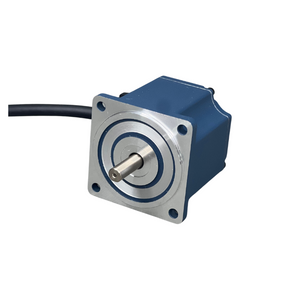

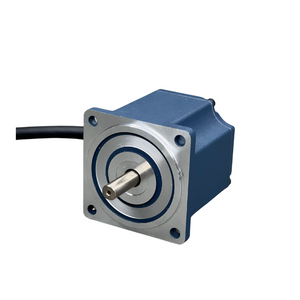

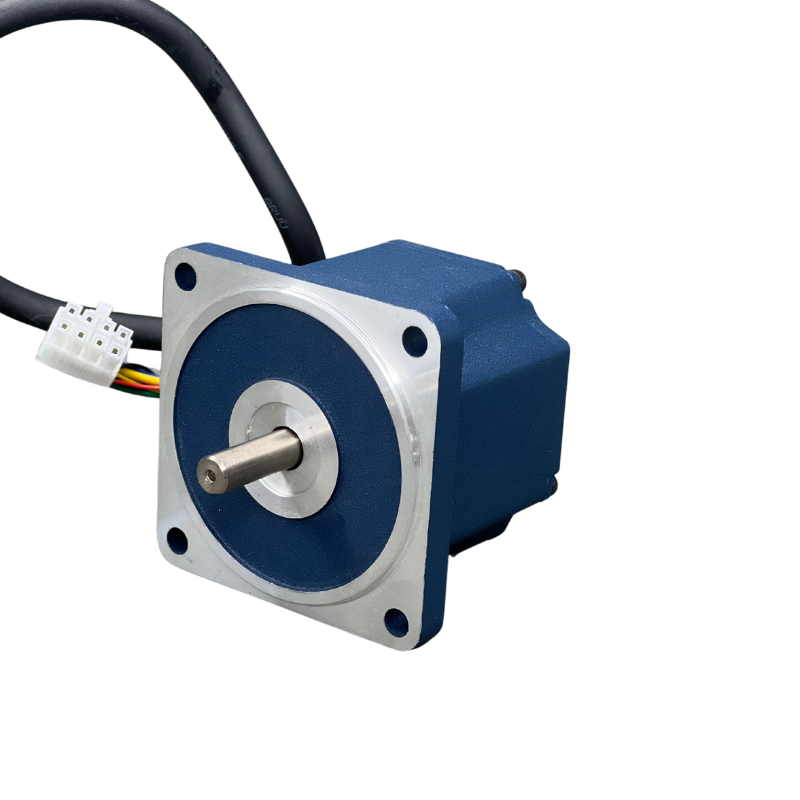

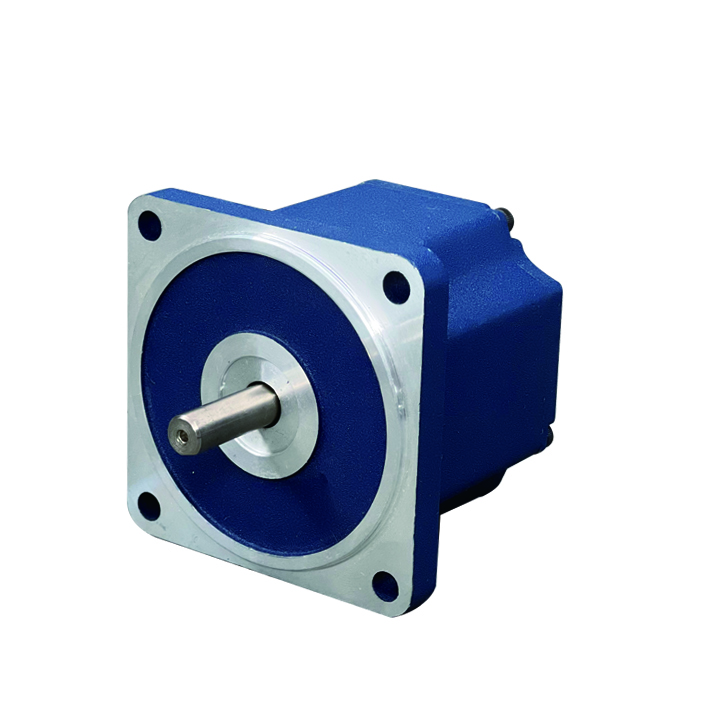

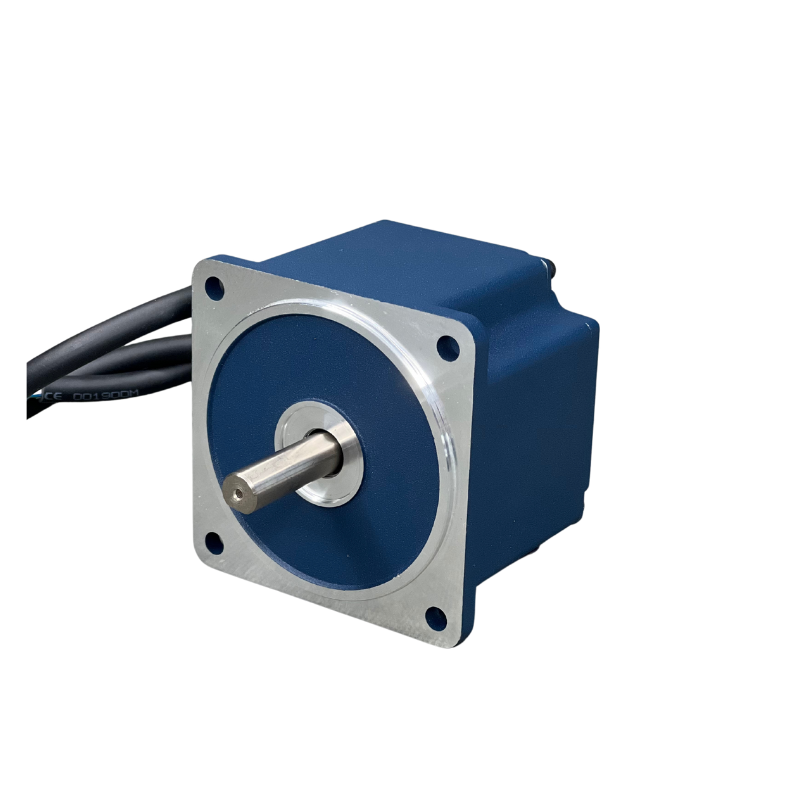

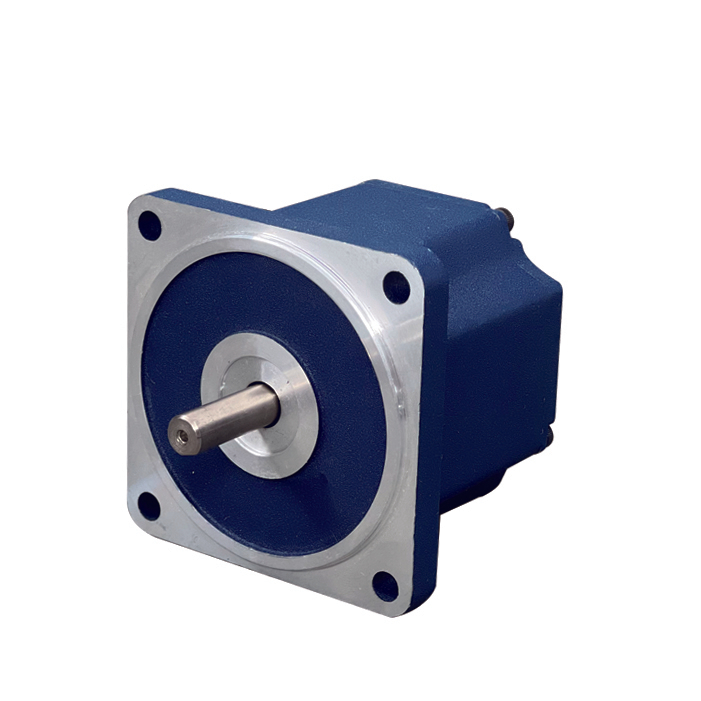

High Efficiency Brushless DC Electric Motor Nema28 24v/36v/48v/310v 30W 60W BLDC Motor

Brushless, low interference: The brushless motor removes the brush. The most direct change is that no spark is generated when the brush motor is running, which greatly reduces the interference of the spark to the remote control radio equipment.
Low noise and stable operation: The brushless motor has no brush, the friction is greatly reduced during operation, the operation is stable, and the noise is much lower. This advantage is a huge support for model stability.
Long life and low maintenance cost: The wear of brushless and brushless motors is mainly on the bearings. From a mechanical point of view, a brushless motor is almost a maintenance-free motor. When necessary, just do some dust removal.

Model:
S70BLDC55
Brand:
HOLRY

Voltage-Power:	24v-30w 24v-60w 36v-30w 36v-60w 48-30w 48v-60w 310v-60w
Availability:

Quantity:



Inquire Add to Basket

Product Description

Adapt to harsh environment, cost-effective, high efficiency, energy saving and environmental protection, efficiency above 80%; High-performance rare earth permanent magnet rotor, high torque, low inertia, and good dynamic response; Three-phase sine wave design, with excellent low-speed smoothing characteristics; Low noise, maintenance-free, and long service life;

low interference：

The brushless motor removes the brush. The most direct change is that no spark is generated when the brush motor is running, which greatly reduces the interference of the spark to the remote control radio equipment.

Low noise and stable operation:

The brushless motor has no brush, the friction is greatly reduced during operation, the operation is stable, and the noise is much lower. This advantage is a huge support for model stability.

Long life and low maintenance cost:

The wear of brushless and brushless motors is mainly on the bearings. From a mechanical point of view, a brushless motor is almost a maintenance-free motor. When necessary, just do some dust removal.

What is a 24V DC motor use for?

Personal Use Products – Several personal use products also rely on a high-quality 24-volt DC motor. Examples of these include home copy/printer machine, hair dryer, footbath, and stick massager.

12V 24V 48V AND 310V BRUSHLESS (BLDC) MOTOR MANUFACTURER

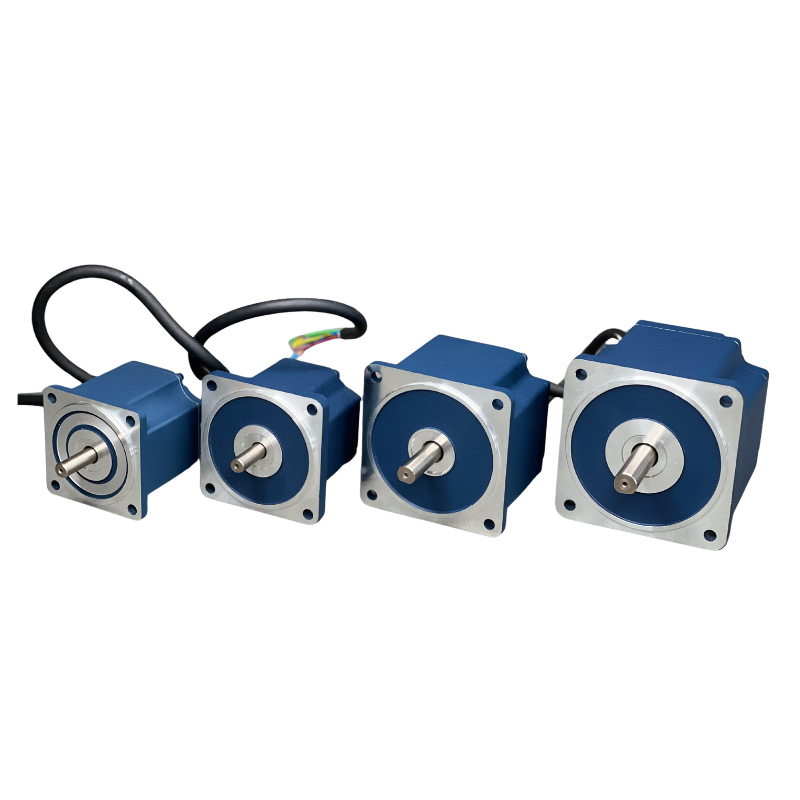

We can provide and support the models you need. We have brushless models of different models and powers. Welcome to consult!

Technique Parameter

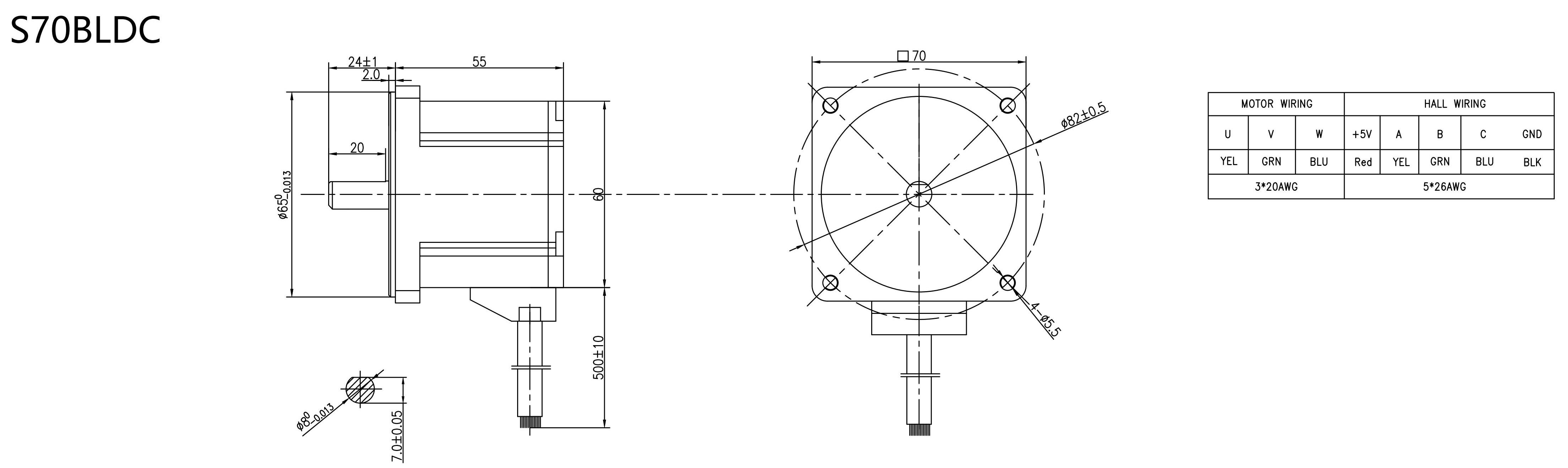

S70BLDC Brushless DC Motor Dimension.pdf

S70BLDC Brushless DC Motor Dimension_00

MODEL	Voltage (VDC）	Rated Power (W)	Rated Torque (N.m）	Rated Speed (RPM）	No load Speed (RPM）	Rated Current (A)	No load Current (A）	Body Length (L)mm	Motor Weight (Kg)
S70BLDC55-20330	24	30	0.095	3000	4000	1.6	0.15	55	0.55
S70BLDC55-30330	36					1.1	0.108
S70BLDC55-40330	48					0.8	0.06
S70BLDC55-20630	24	60	0.19	3000	4000	3.3	0.25	55	0.65
S70BLDC55-30630	36					2.2	0.17
S70BLDC55-40630	48					1.6	0.13
S70BLDC55-50630	310					0.3	0.02

FAQ

1.What are the advantages of brushless DC motors?

Among these, brushless DC motors (BLDC) feature high efficiency and excellent controllability, and are widely used in many applications. The BLDC motor has power-saving advantages relative to other motor types.

2.When was the brushless motor invented?

Although the brushless motor was invented in the mid 19th century, it wasn’t until 1962 that it became commercially viable. What is a brushless motor? Brushless motors are synchronous electric motors that move around electronically.

3.What are the parts of a brushless motor?

They contain minimal parts such as the commutator, rotary parts and slip rings that contribute to increasing its weight. The brushless motors also dominate several applications such as hard drives, pumps, fans, coffee machines, hair dryers, mixers and CD/DVD players in variable and adjustable speed applications.
