60 Mm Frame Size Frameless Motors

Specifications:
60 mm Frame Size
25 mm Stack Length
27.25 mm Rotor ID
0.6 Nm Rated Torque
48 VDC Rated Voltage

Features and Benefits:
High torque to weight ratio
Compact & lightweight
Hall sensor and thermistor available

Brand:
HOLRY

Availability:

Quantity:



Inquire Add to Basket

Product Description

60 mm Frameless Motors Description

HOLRY 60mm Frameless BLDC Motor series features 60mm outer diameter split stator & rotor hollow frameless design. Delivering high torque density, zero-backlash direct drive, ultra-low cogging torque and fast dynamic response. Customize stack length, KV, voltage & sensors for robotic joints, optical stabilizers, precision automation & medical devices.

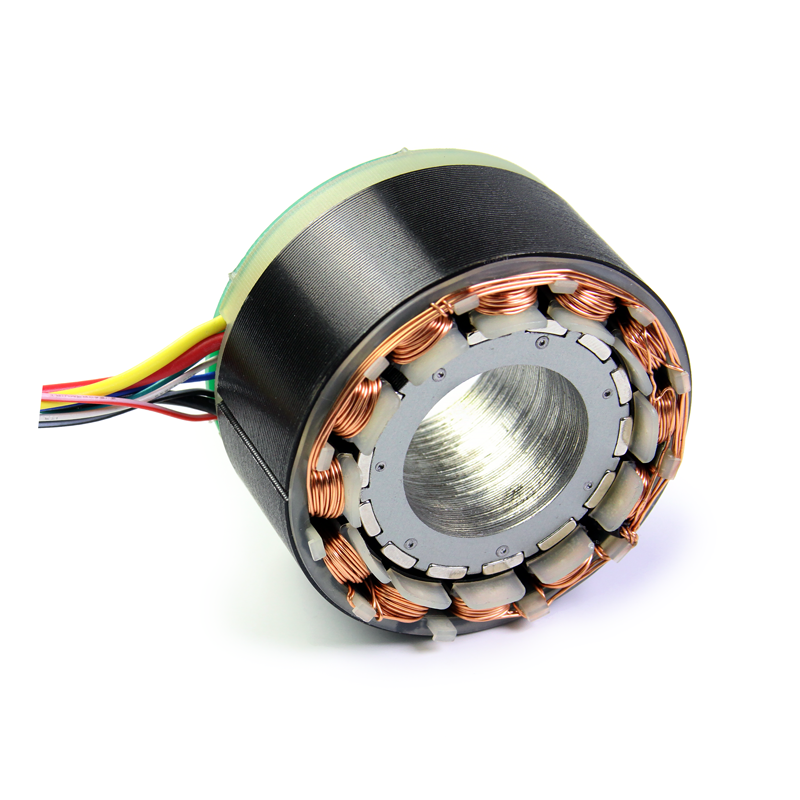

60 mm Frame Size Frameless Motors - HOLRY

60 mm Frame Size Frameless Motor Manufacturer - HOLRY

60mm Frameless Motors are widely used in the joints of collaborative robots - HOLRY

60mm Frameless BLDC Motor Introduction

60mm Frameless BLDC Motor is a high-performance split brushless motor featuring a stator and rotor separated structure without outer housing and shaft assembly. With a compact 60mm outer diameter design, it boasts ultra-high power density and a miniaturized installation form, perfectly catering to the lightweight and integrated design demands of precision motion equipment.

Adopting optimized electromagnetic winding technology and high-quality rare-earth permanent magnets, this frameless BLDC motor effectively reduces cogging torque and torque ripple, enabling smooth, stable and low-vibration operation at both low and high speeds. It delivers reliable and consistent output torque with excellent dynamic response and operational efficiency, greatly improving the motion accuracy of terminal equipment.

Featuring a hollow inner bore structure, the motor reserves flexible space for internal wiring, shaft penetration and optical path layout, which greatly simplifies the overall mechanical structure design of equipment. Free from the limitations of traditional integrated motors, it can be directly embedded into customer’s customized mechanical structures, realizing zero-backlash direct drive and higher transmission rigidity.

Supporting diversified customization of voltage parameters, stack height, position sensors and temperature protection components, the 60mm Frameless BLDC Motor is highly adaptable. It is widely applied in collaborative robot joints, humanoid robots, precision gimbal stabilization systems, medical intelligent equipment and miniature automated precision actuators, serving as an ideal core power component for high-precision intelligent motion scenarios.

Curves

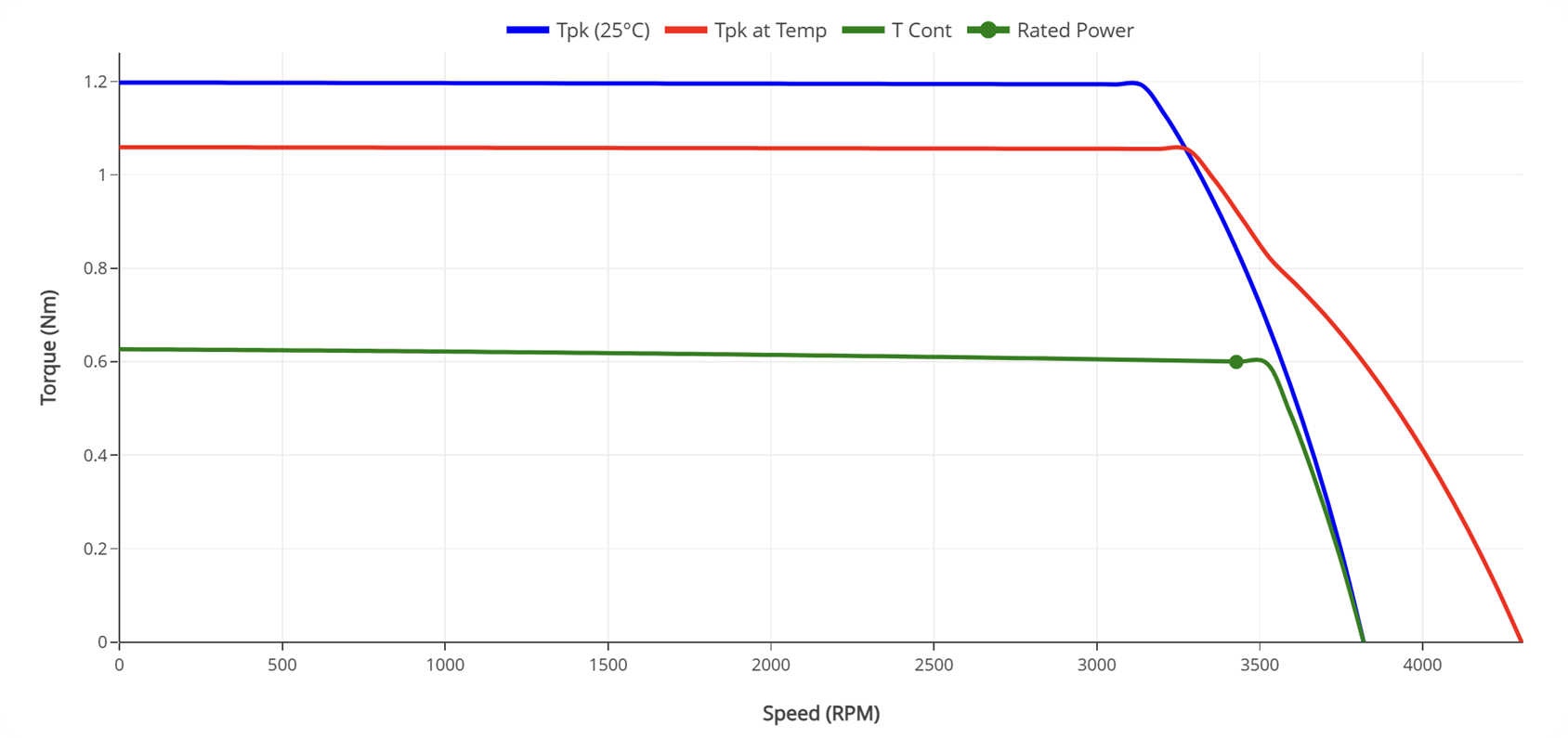

Performance Curves

60mm Frameless Torque Motors Performance Curves - HOLRY

Specifications

Operating Specifications

Ambient Temp	25 ℃
Winding Temp	155°C
Winding adjustment	0
System Friction	0 N·m
Heat Sink	7.87" x 7.87" x 0.5"

Performance Specifications

Bus Voltage (Vbus)	48 VDC
Max Cont. Torque (Tcont)	0.627Nm
Max Cont. Current (Icont)	5.27
Peak Torque (Tpk)	1.197Nm
Peak Current (Ipk)	10.4 Arms
Rated Torque (Trtd)	0.600 Nm
Rated Power (Prtd)	215 W
Rated Speed (Nrtd)	3428 RPM
