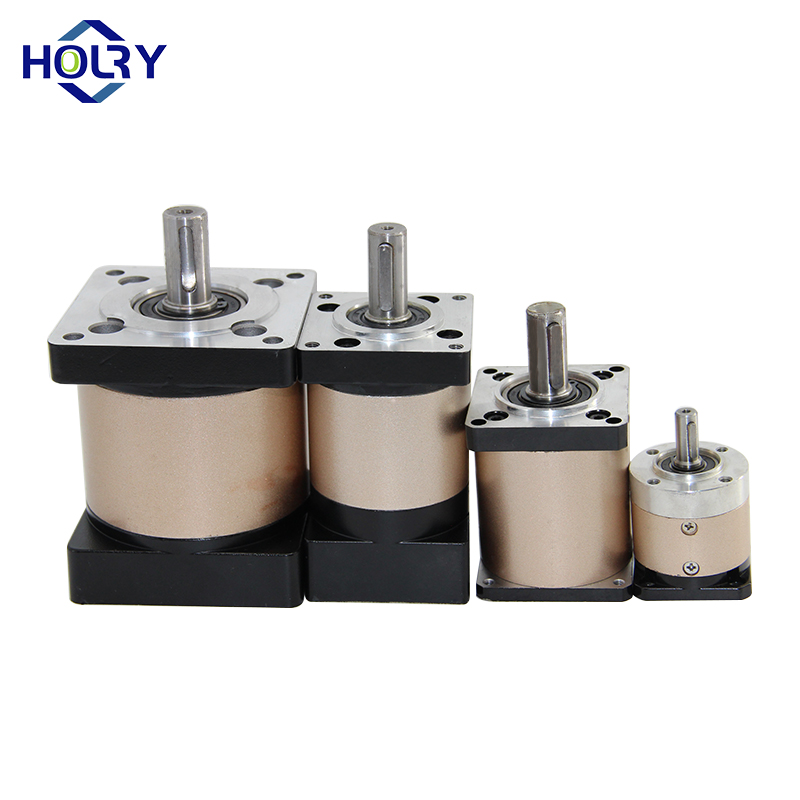

NEMA23 Three Stage Planetary Reducer Reduction Ratio1:100 Rated Input Speed:4000rpm Transmission Efficiency 90%

Planetary reducer is an industrial product with a wide range of uses, which can reduce the speed of the motor while increasing the output torque. Planetary reducer can be used as a supporting component in industries such as lifting, excavation, transportation, and construction.
  • NEMA23 57mm Planetary Reducer
  • Holry Motor
Reduction Ratio:
1:100
Availability:
Quantity:
Inquire Add to Basket

Product Description

NEMA23  Two Stage Planetary Reducer

 Reduction Ratio1：16/20/25/40/50

NEMA23 Geared Stepper Motor with Gear Ratio 1 100 for CNC Machine, Find Details about 57mm Stepper Motor, Low Speed Stepper Motor from NEMA23 Geared Stepper Motor with Gear Ratio 1 100 for CNC Machine.


Planetary reducer is an industrial product with a wide range of uses, which can reduce the speed of the motor while increasing the output torque. Planetary reducer can be used as a supporting component in industries such as lifting, excavation, transportation, and construction.

NEMA 17 Planetray Reducer


Product Analysis

NEMA 23 Planetray Reducer Analysis

Planetray Reducer - Product Analysis


Product Parameters


NEMA 23 Planetray Reducer Parameters

Project

Unite

One Stage

Two Stage

Reduction Radio

i

4

5

10

16

20

25

40

50

100

Rated Output Torque

N.m

23

20

15

23

23

20

23

23

15

Stopping Torque

N.m

Three Times The Rated Output Torque

Rated Input Speed

rpm

4000

Maximum Input Speed

rpm

8000

Transmission Efficiency

%

90

85

Back Lash

arcmin

≤15

≤25

Noise Level

dB

≤58

Lubrication

Synthetic GreaSe

Using Life

h

20000

Body Length

72mm

44

90

Weight

Kg

1

1.5

Protection Level

IP56


NEMA23 Planetray Reducer- Drawing


Product Application


NEMA 23 Planetray Reducer Application

Planetary Reducer - Product Application




Video

NEMA 17 Planetray  Reducer Video
