NEMA23 Two Stage Planetary Reducer Reduction Ratio1:16/20/25/40/50 Rated Input Speed:4000rpm Transmission Efficiency 90%

Planetary reducer is an industrial product with a wide range of uses, which can reduce the speed of the motor while increasing the output torque. Planetary reducer can be used as a supporting component in industries such as lifting, excavation, transportation, and construction.
  • NEMA23 57mm Planetary Reducer
  • Holry Motor
Reduction Ratio:
Availability:
Quantity:

Description

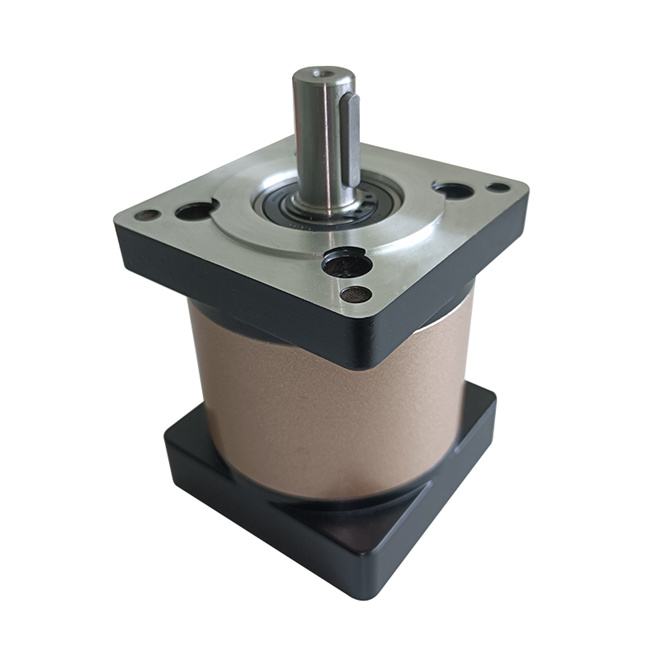

NEMA 23  Two Stage Planetary Reducer


Reduction Ratio1:16/20/25/40/50


Quality Two Stage Gear Ratio 25 1 Nema 23 Stepper Motor Geared Speed Reducer Nema23 Planetary Gearbox Buy Two Stages Gear Ratio 1 25 57mm Nema23 Stepper Motors Planetary Gearboxes,Geared Stepper Motor Speed Reducers,Planetary Gear Box Product on Alibaba com


Planetary reducer is an industrial product with a wide range of uses, which can reduce the speed of the motor while increasing the output torque. Planetary reducer can be used as a supporting component in industries such as lifting, excavation, transportation, and construction.


NEMA 23 Two Stage Planetary Reducer | NEMA 23 Planetary Gearbox Reduction Ratio1:16/20/25/40/50 Rated Input Speed:4000rpm Transmission Efficiency 90%.HOLRY is Nema 23 Planetary Gearbox Reducer |  Planetary Reducer | Planetary Gearbox Manufacturers & Supplier & Factory.


Planetray Reducer | china planetary gearbox - HOLRY


Analysis

NEMA 23 Planetray Reducer | Planetary Gearbox Analysis

NEMA 23 Planetray Reducer | Planetary Gearbox Analysis - HOLRY


Parameters


NEMA 23 Planetray Reducer | Planetary Gearbox Parameters


Project

Unite

One Stage

Two Stage

Reduction Radio

i

4

5

10

16

20

25

40

50

100

Rated Output Torque

N.m

23

20

15

23

23

20

23

23

15

Stopping Torque

N.m

Three Times The Rated Output Torque

Rated Input Speed

rpm

4000

Maximum Input Speed

rpm

8000

Transmission Efficiency

%

90

85

Back Lash

arcmin

≤15

≤25

Noise Level

dB

≤58

Lubrication


Synthetic GreaSe

Using Life

h

20000

Body Length

72mm

44

90

Weight

Kg

1

1.5

Protection Level

IP56


NEMA23 Planetray Reducer - HOLRY


Application


NEMA 23 Planetray Reducer Application


Planetary Reducer - Product Application


NEMA 23 Planetray Reducer Application To CNC Machine Tools & Mining Industry & Metallurgical Industry & Automated Manufacturing & Warehouse Logistics & Textile Industry.
