What Are The Symptoms of A Bad Stepper Motor?

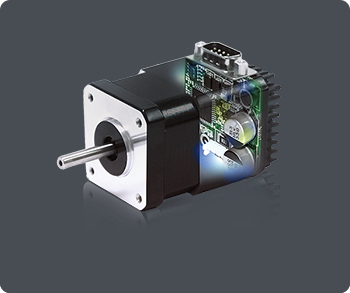

Stepper motors are widely used in CNC machines, 3D printers, robotics, industrial automation systems, and many other precision applications.Their ability to move in accurate, repeatable steps makes them ideal for controlled positioning tasks. However, like any electromechanical component, stepper motors can develop problems over time due to wear, electrical faults, overheating, or improper operating conditions.

Recognizing the symptoms of a bad stepper motor early can help prevent equipment downtime, improve system performance, and reduce repair costs. This guide explains the most common warning signs, their causes, and how to troubleshoot them effectively.

1. Unusual Noises During Operation

One of the earliest indicators of a failing stepper motor is unusual noise during operation. While stepper motors naturally produce some sound, changes in noise patterns often indicate underlying issues.

Grinding Sounds

Grinding noises may indicate worn bearings, damaged internal components, or debris inside the motor. This sound often becomes more noticeable as the motor operates under load.

Clicking or Tapping Noises

Repeated clicking or tapping sounds can signal missed steps, loose mechanical couplings, or synchronization problems between the motor and controller.

High-Pitched Whining

A high-pitched whining sound may result from incorrect driver settings, excessive operating frequencies, or electrical issues affecting motor performance.

2. Loss of Torque or Power

A healthy stepper motor should provide consistent torque throughout its operating range. When torque decreases significantly, performance suffers.

Key Signs of Torque or Power Loss Include:

• Difficulty moving the intended load

• Reduced acceleration capability

• Unexpected stalling during operation

• Inconsistent positioning accuracy

• Increased step losses under normal loads

Several Issues Can Lead to This Condition:

• Damaged motor windings

• Insufficient supply voltage

• Excessive mechanical load

• Incorrect current settings

• Driver malfunction

• Worn bearings creating friction

To Troubleshoot, Technicians Should:

• Verify power supply voltage and current

• Check driver configuration settings

• Inspect mechanical components for binding

• Test winding resistance

• Reduce load and observe performance changes

3. Overheating Issues

Stepper motors naturally generate heat during operation, but excessive temperatures may indicate a serious problem.

Common Signs of Overheating

• Motor housing becomes extremely hot to touch

• Burnt odor near the motor

• Thermal shutdowns

• Reduced motor efficiency

• Discolored wiring or insulation

Causes of Stepper Motor Overheating

• Excessive current settings

• Continuous operation under heavy load

• Poor ventilation

• Mechanical binding

• Driver malfunction

• High ambient temperatures

Troubleshooting and Fixes

• Verify current settings match manufacturer specifications

• Improve airflow around the motor

• Inspect for excessive mechanical resistance

• Check driver functionality

• Install cooling solutions if necessary

Long-Term Impact of Overheating

Ignoring overheating can lead to insulation breakdown, winding damage, reduced motor lifespan, and complete motor failure.

4. Inconsistent or Jerky Motion

Smooth movement is critical for stepper motor performance. Jerky or inconsistent motion often indicates a developing problem.

Common Symptoms of Jerky Motion

• Uneven movement

• Sudden speed fluctuations

• Unexpected pauses

• Vibration during operation

• Positioning inaccuracies

Possible Causes

1). Electrical Problems

• Insufficient current

• Damaged wiring

• Unstable power supply

• Electrical interference

2). Mechanical Issues

• Worn bearings

• Misalignment

• Loose couplings

• Excessive friction

3). Driver and Control Settings

• Incorrect microstepping configuration

• Improper acceleration settings

• Faulty driver electronics

Troubleshooting Steps

• Inspect all electrical connections

• Verify driver settings

• Check mechanical alignment

• Test with reduced speed and load

• Monitor power supply stability

Consequences of Ignoring the Issue

Continued operation can increase wear, reduce accuracy, and eventually lead to complete system failure.

5. Frequent Step Losses

Step loss occurs when the motor fails to execute commanded steps, resulting in positioning errors.

Signs of Step Loss

• Inaccurate positioning

• Gradual loss of calibration

• Missed movements

• Unexpected machine behavior

• Product quality issues

Common Causes of Step Loss

1). Electrical Issues

• Low supply voltage

• Driver failure

• Current limitations

• Signal interference

2). Mechanical Causes

• Excessive load

• Binding components

• Poor lubrication

• Mechanical obstructions

3). Driver or Control Problems

• Incorrect acceleration profiles

• Poor tuning

• Software configuration errors

Troubleshooting and Solutions

• Reduce load demands

• Increase supply voltage within specifications

• Optimize acceleration settings

• Inspect mechanical systems

• Replace faulty drivers if necessary

Impact of Ignoring Step Loss

Persistent step loss can compromise product quality, reduce operational efficiency, and cause costly production errors.

6. Motor Does Not Start or Fails Intermittently

hybrid stepper motor that refuses to start or operates sporadically requires immediate attention.

Symptoms of Starting or Intermittent Failures

• Motor remains stationary when commanded

• Random shutdowns

• Unpredictable operation

• Delayed startup

• Inconsistent performance

Common Causes

1). Electrical Faults

• Broken wires

• Damaged connectors

• Faulty power supply

• Open windings

2). Mechanical Issues

• Seized bearings

• Jammed loads

• Physical obstructions

3). Control or System Errors

• Faulty controller outputs

• Software issues

• Incorrect wiring configuration

Troubleshooting and Solutions

• Verify all electrical connections

• Test winding continuity

• Check controller signals

• Inspect mechanical movement

• Replace defective components

Consequences of Ignoring the Issue

Intermittent failures often worsen over time and may eventually result in complete motor failure.

7. Excessive Vibration or Resonance

2 Phase stepper motor can experience resonance under certain operating conditions, but excessive vibration is often a warning sign.

Signs of Excessive Vibration or Resonance

• Increased noise levels

• Visible shaking

• Reduced positioning accuracy

• Premature component wear

• Surface finish defects in machining applications

Common Causes

1). Mechanical Imbalance

• Misaligned shafts

• Unbalanced loads

• Loose mounting hardware

2). Electrical or Control Issues

• Improper stepping frequencies

• Driver tuning problems

• Current regulation issues

3). Installation Factors

• Weak mounting structures

• Poor machine design

• Insufficient damping

Troubleshooting and Solutions

• Tighten mounting hardware

• Adjust operating speeds

• Optimize driver settings

• Add vibration dampers

• Balance mechanical loads

Long-Term Impact

Excessive vibration accelerates wear and may damage both the motor and connected equipment.

8. Electrical Irregularities

Electrical problems can significantly affect stepper motor performance.

Common Symptoms of Electrical Problems

• Random motor behavior

• Sudden stoppages

• Unstable torque

• Driver faults

• Excessive current draw

Causes of Electrical Irregularities

1). Damaged Windings

Overheating and aging can degrade insulation and winding integrity.

2). Faulty Motor Driver or Controller

Driver failures can disrupt current regulation and motor operation.

3). Poor Wiring Connections

Loose or corroded connections may create intermittent faults.

4). Power Supply Instability

Voltage fluctuations can reduce motor reliability and performance.

Troubleshooting and Solutions

• Measure winding resistance

• Inspect wiring and connectors

• Test the power supply

• Evaluate driver performance

• Replace damaged components

Consequences of Ignoring Electrical Irregularities

Electrical faults can escalate into severe motor damage, controller failures, and unexpected downtime.

9. Physical Damage and Wear

Visible signs of wear often indicate that a stepper motor is approaching the end of its service life.

Common Signs of Physical Damage

• Cracked housing

• Bent shafts

• Excessive bearing play

• Corrosion

• Damaged connectors

Causes of Physical Wear

• Long-term operation

• Harsh environments

• Improper installation

• Excessive vibration

• Mechanical impacts

Troubleshooting and Maintenance

• Conduct regular inspections

• Replace worn bearings

• Clean contaminants from the motor

• Lubricate related mechanical components

• Repair or replace damaged parts

Impact of Ignoring Physical Damage

Physical deterioration can lead to reduced accuracy, increased downtime, and catastrophic failure.

10. Troubleshooting a Bad Stepper Motor

When a stepper motor shows signs of failure, systematic troubleshooting can help identify the root cause.

1. Inspect Wiring and Connections

Check all cables, connectors, and terminals for damage, looseness, or corrosion.

2. Test Motor Windings

Measure winding resistance using a multimeter and compare readings with manufacturer specifications.

3. Evaluate the Motor Driver

Verify that the driver is supplying the correct voltage and current.

4. Inspect Mechanical Components

Look for binding, misalignment, worn bearings, or excessive friction.

5. Monitor Temperature

Measure motor temperature during operation to identify overheating issues.

6. Test with Reduced Load

Removing or reducing the load can help determine whether overload conditions are causing the problem.

7. Evaluate for Electrical Irregularities

Monitor voltage stability and inspect for electrical noise or interference.

8. Document Findings and Take Action

Record observations, measurements, and test results to guide repairs and future maintenance.

Conclusion

A structured troubleshooting process can quickly identify the source of stepper motor problems and minimize costly downtime.

11. When to Replace a Stepper Motor

In some cases, repair is not practical, and replacement becomes the best solution.

1. Persistent Loss of Torque or Power

If performance remains poor despite troubleshooting, internal damage may be irreversible.

2. Frequent Step Losses

Repeated step losses that cannot be corrected often indicate significant motor degradation.

3. Overheating Beyond Safe Limits

Chronic overheating can permanently damage windings and insulation.

4. Mechanical Damage or Wear

Severe shaft damage, bearing failure, or housing cracks may justify replacement.

5. Electrical Failure

Shorted windings or insulation breakdown often require complete motor replacement.

6. Intermittent Operation or Failure to Start

Recurring operational failures may indicate aging components beyond repair.

7. Cost-Benefit Consideration

If repair costs approach or exceed replacement costs, installing a new motor is typically the more economical choice.

Best Practices for Replacement

• Choose a compatible motor specification

• Verify voltage and current requirements

• Replace damaged drivers if necessary

• Recalibrate the system after installation

• Follow manufacturer recommendations

12. Final Thoughts

A bad stepper motor can exhibit many symptoms, including unusual noises, torque loss, overheating, jerky motion, step losses, intermittent operation, excessive vibration, electrical irregularities, and visible physical damage. Recognizing these warning signs early allows technicians to diagnose problems quickly and prevent costly equipment failures.

Regular maintenance, proper installation, and routine inspections are essential for maximizing stepper motor reliability and service life. When symptoms persist despite troubleshooting efforts, replacing the motor may be the most effective long-term solution for restoring system performance.
