70mm Frameless BLDC Motor

Specifications:
70 mm Frame Size
7.1 mm Stack Length
35 mm Rotor ID
0.186 Nm Rated Torque
24 VDC Rated Voltage

Features and Benefits:
High torque to weight ratio
Compact & lightweight
Hall sensor and thermistor available

Brand:
HOLRY

Availability:

Quantity:



Inquire Add to Basket

Product Description

70mm frameless BLDC motor Description

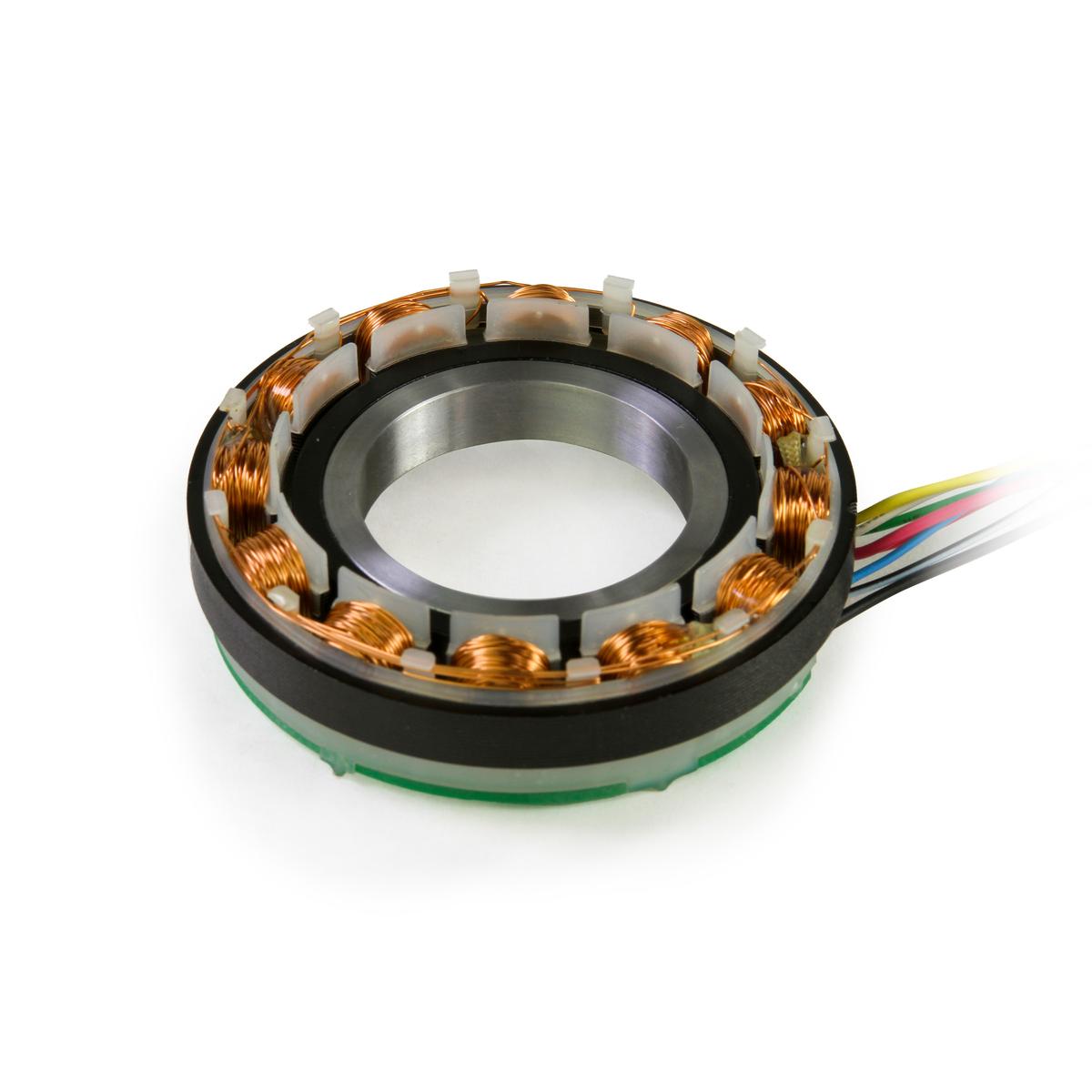

70mm frameless BLDC motor is composed of an independent stator and a permanent magnet rotor. The large and medium-sized hollow holes facilitate the routing of wires and the passage of light, eliminating the need for gear transmission and achieving direct drive with zero backlash positioning. The optimized magnetic circuit reduces the slotting torque, resulting in low vibration and noise, and fast dynamic response. The stator adheres closely to the equipment housing, ensuring high heat dissipation efficiency. Optional Hall position sensing and built-in thermistor overheat protection are available. It supports OEM non-standard customization and is suitable for high-precision compact equipment such as collaborative robots, minimally invasive surgical instruments, industrial precision turntables, exoskeleton devices, etc.

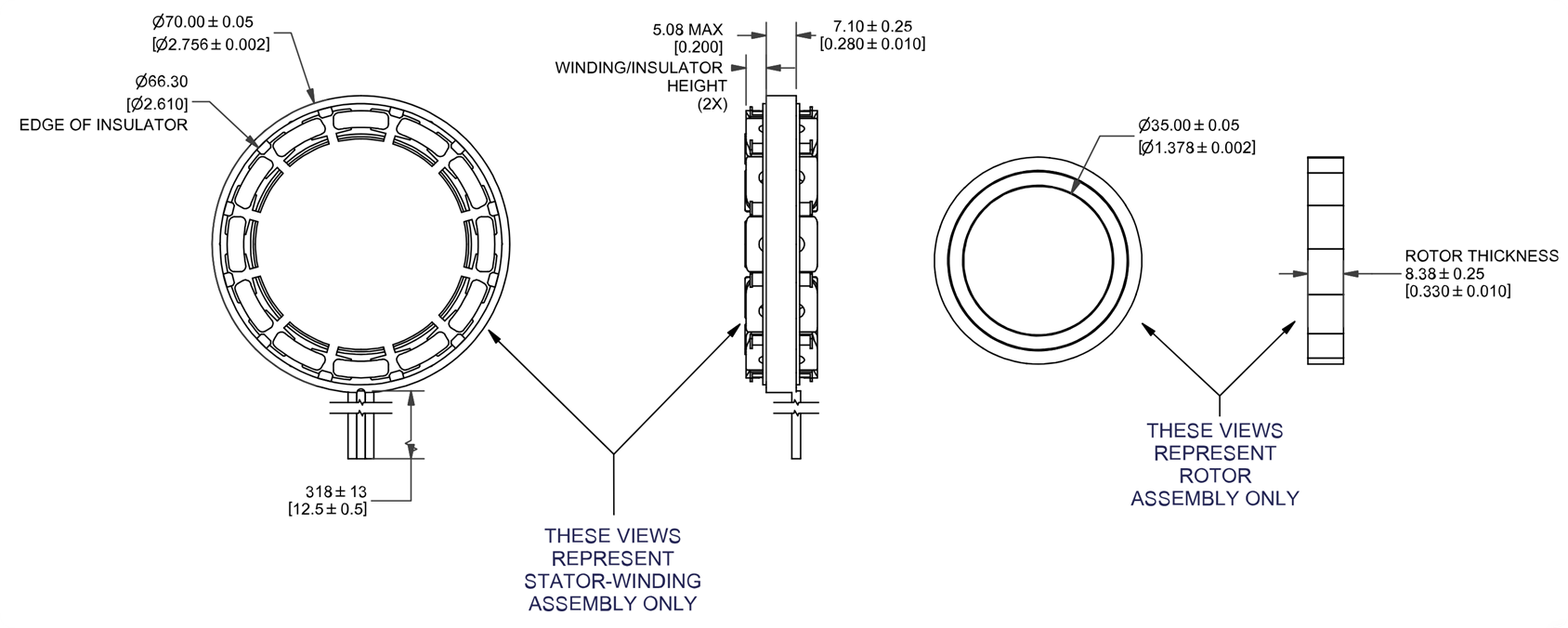

70mm Frameless BLDC Motor - HOLRY

Specifications:

70 mm Frame Size
7.1 mm Stack Length
35 mm Rotor ID
0.186 Nm Rated Torque
24 VDC Rated Voltage

Features and Benefits:

High torque to weight ratio
Compact & lightweight
Hall sensor and thermistor available

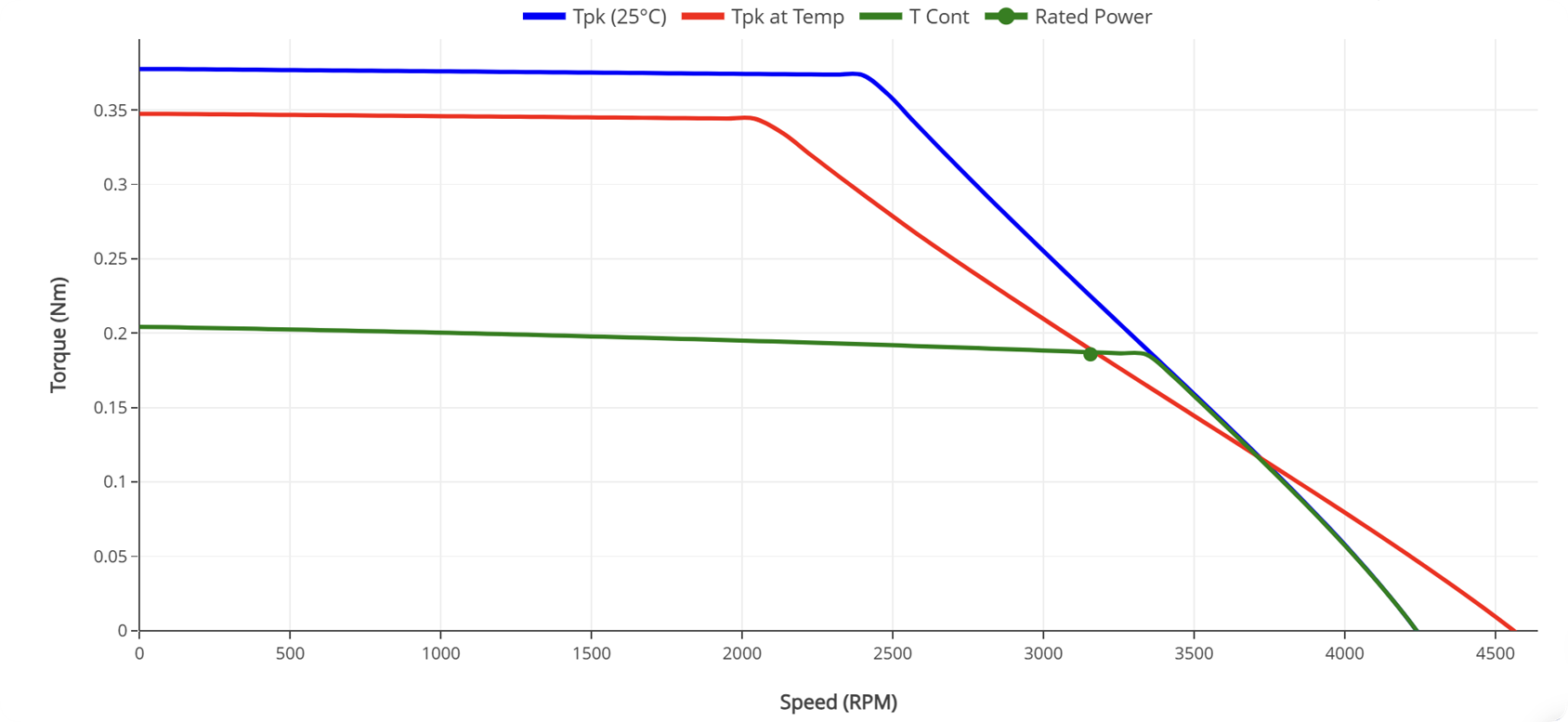

Curves

Performance Curves

70mm Frameless BLDC Motor ，70mm Frameless Motor - HOLRY

Specifications

70mm frameless BLDC motor Specifications

Operating Specifications

Ambient Temp	25 ℃
Winding Temp	155°C
Winding adjustment	0
System Friction	0 N·m
Heat Sink	7.87" x 7.87" x 0.5"

Performance Specifications

Bus Voltage (Vbus)	24 VDC
Max Cont. Torque (Tcont)	0.204 Nm
Max Cont. Current (Icont)	3.5
Peak Torque (Tpk)	0.378 Nm
Peak Current (Ipk)	6.47 Arms
Rated Torque (Trtd)	0.186 Nm
Rated Power (Prtd)	61 W
Rated Speed (Nrtd)	3156 RPM
