100mm Frameless BLDC Motor

Frameless BLDC Torque Motors

Specifications:

100 mm Frame Size
7 mm Stack Length
60 mm Rotor ID
0.856 Nm Rated Torque
72 VDC Rated Voltage

Features and Benefits:

High torque to weight ratio
Compact & lightweight
Hall sensor and thermistor available

Brand:
HOLRY

Availability:

Quantity:



Inquire Add to Basket

Product Description

100mm Frameless BLDC Motor

HOLRY 100mm large outer diameter frameless BLDC motor, with a split hollow stator and rotor structure, offers extremely high torque output and outstanding power density. It can be integrated directly into equipment without an outer casing, featuring direct drive with zero backlash and smooth operation at low speeds. It supports customization of voltage, stack thickness, and sensor components, and is suitable for heavy-duty robotic arms, large photoelectric turntables, and human-shaped robot torso joints.

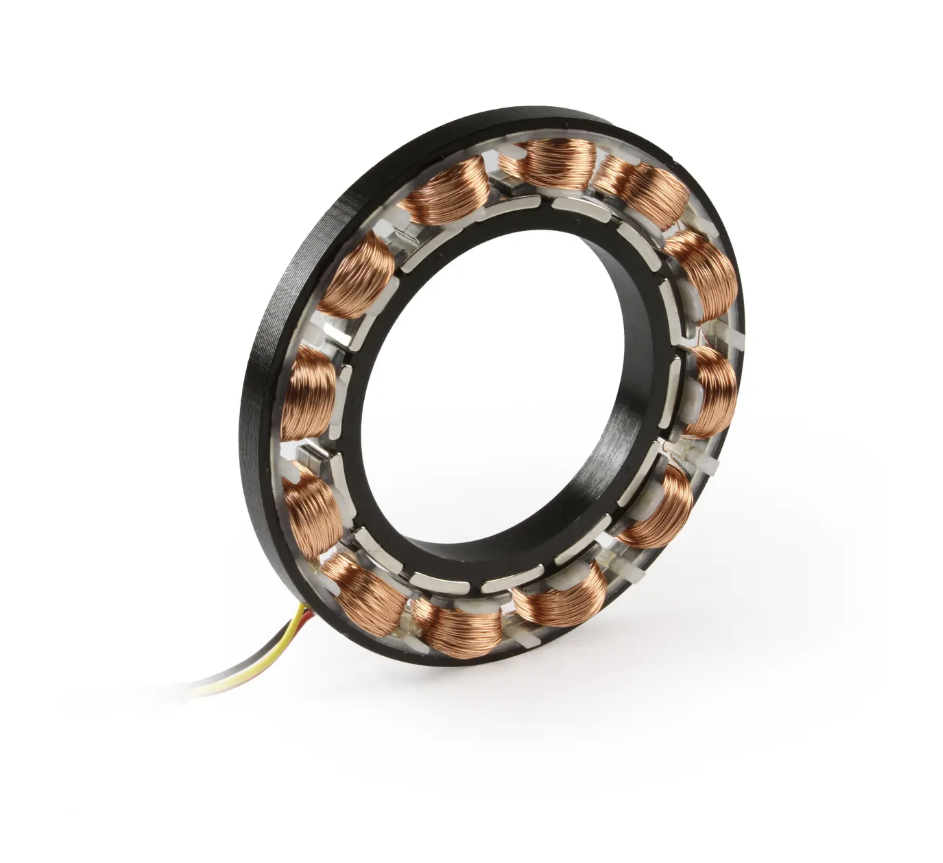

100mm Frameless BLDC Motor Manufacturer - OEM Frameless Motor - HOLRY

Application of Fulling frameless motor - HOLRY

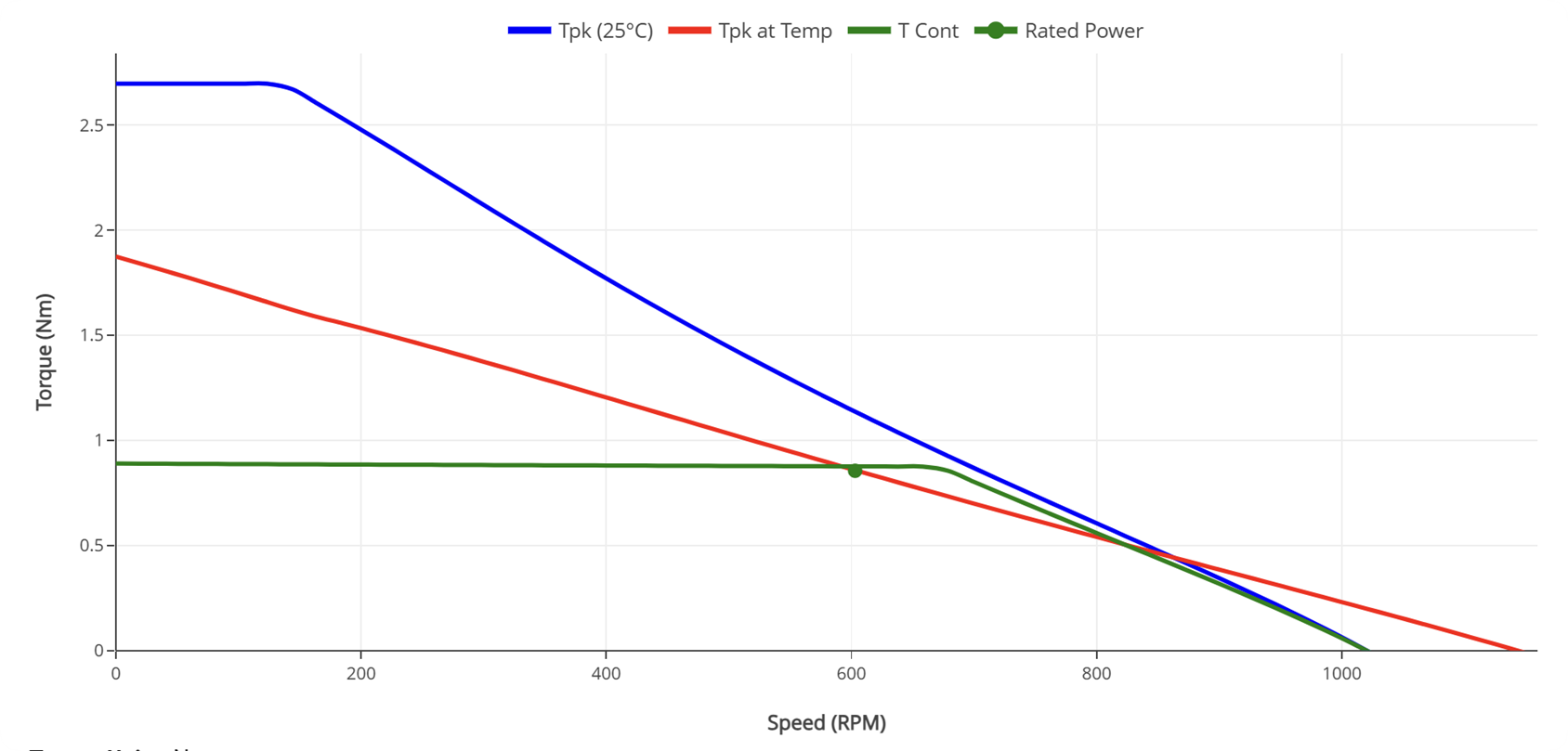

Curves

100mm Frameless BLDC Motor Manufacturer - HOLRY

Specifications

100mm Frameless BLDC Motor Specifications

Operating Specifications

Ambient Temp	25 ℃
Winding Temp	155°C
Winding adjustment	0
System Friction	0 N·m
Heat Sink	7.87" x 7.87" x 0.5"

Performance Specifications

Bus Voltage (Vbus)	72 VDC
Max Cont. Torque (Tcont)	0.890 Nm
Max Cont. Current (Icont)	1.26
Peak Torque (Tpk)	2.697 Nm
Peak Current (Ipk)	3.68 Arms
Rated Torque (Trtd)	0.855 Nm
Rated Power (Prtd)	54 W
Rated Speed (Nrtd)	603 RPM
