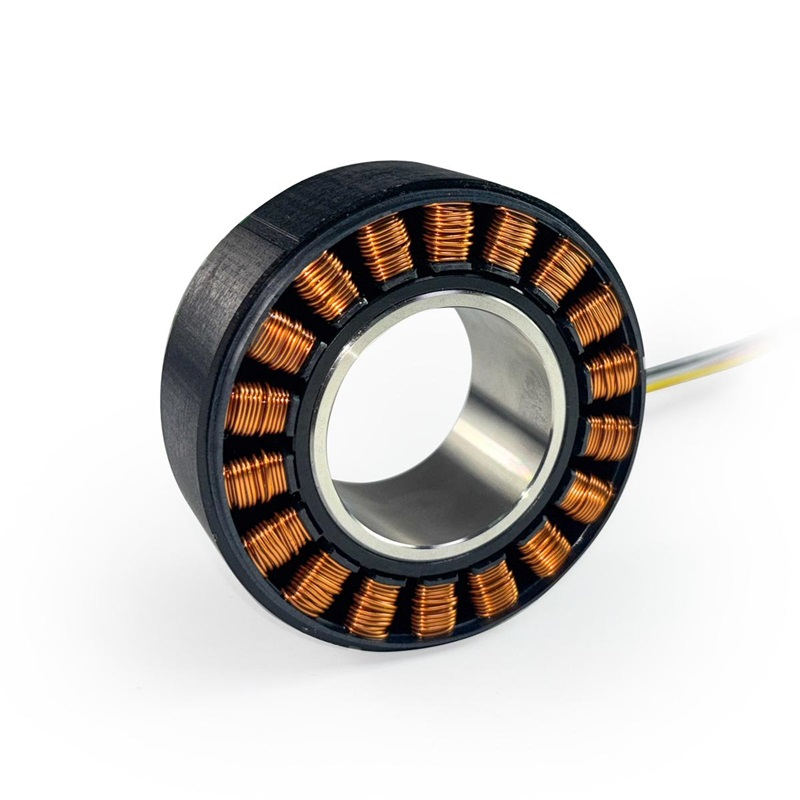

94mm Frameless BLDC Motor

Specifications:

94 mm Frame Size
8.2 mm Stack Length
47 mm Rotor ID
1.54 Nm Rated Torque
48 VDC Rated Voltage

Features and Benefits:

High torque to weight ratio
Compact & lightweight
Hall sensor and thermistor available

Brand:
HOLRY

Availability:

Quantity:



Inquire Add to Basket

Product Description

94mm Frameless BLDC Motor Description

HOLRY 94mm frameless BLDC motor, with an outer diameter of 94mm. It features a large and hollow split direct-drive structure, offering strong torque capacity and high power density. It can be integrated into equipment without an outer casing, operates smoothly at low speeds without backlash, and supports 24V/48V, variable thickness, and full customization of sensor components. It is suitable for heavy-duty robotic arms, humanoid robots, and large-scale photoelectric turntables.

94mm Frameless BLDC Motor - HOLRY

94mm Frameless BLDC Motor Manufacturer | OEM Frameless Motor - HOLRY

China 94mm frameless BLDC motor manufacturer, HOLRY offers high torque density, OEM customization, and stable performance. Ideal for robotics, automation, and precision motion systems.

Curves

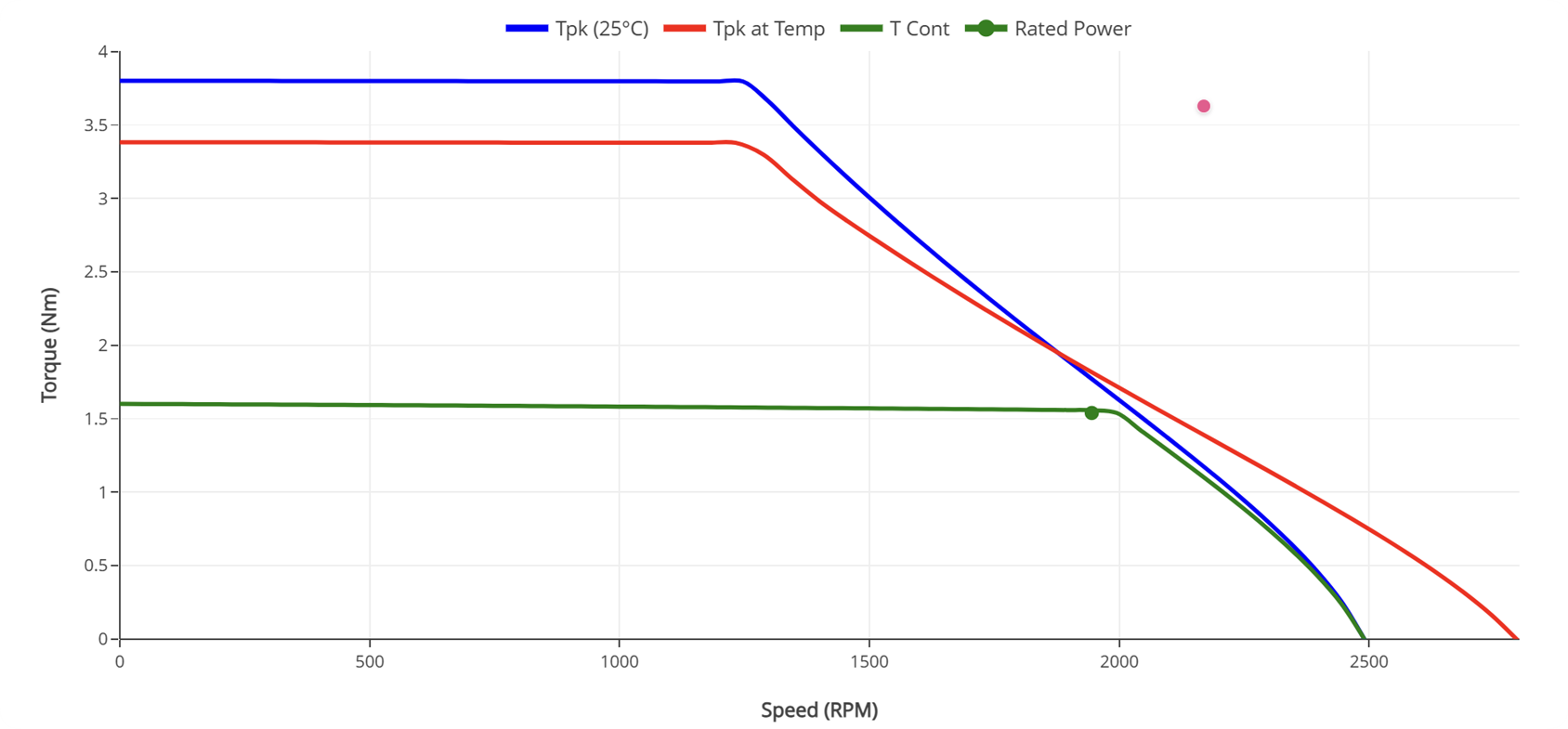

94mm Frameless BLDC Motor Performance Curves

94mm Frameless BLDC Motor Dimensions - HOLRY

Specifications

94mm Frameless BLDC Motor Specifications

Operating Specifications

Ambient Temp	25 ℃
Winding Temp	155°C
Winding adjustment	0
System Friction	0 N·m
Heat Sink	10" x 10" x 0.375"

Performance Specifications

Bus Voltage (Vbus)	48 VDC
Max Cont. Torque (Tcont)	1.601 Nm
Max Cont. Current (Icont)	8.16
Peak Torque (Tpk)	3.801 Nm
Peak Current (Ipk)	19 Arms
Rated Torque (Trtd)	1.539 Nm
Rated Power (Prtd)	313 W
Rated Speed (Nrtd)	1945 RPM
