115mm Frameless BLDC Motor

115mm Frameless BLDC Torque Motors

Specifications:

115 mm Frame Size
8.2 mm Stack Length
57.55 mm Rotor ID
1.86 Nm Rated Torque
48 VDC Rated Voltage

Features and Benefits:

High torque to weight ratio
Compact & lightweight
Hall sensor and thermistor available

Brand:
HOLRY

Availability:

Quantity:



Inquire Add to Basket

Product Description

115mm Frameless BLDC Motor Description

115mm Frameless BLDC Motor from HOLRY is designed for high-performance motion control applications requiring compact structure, high torque density, and precise operation. Featuring a frameless design, it allows seamless integration into your system, reducing size and improving overall efficiency.

This motor delivers smooth rotation, low cogging torque, and excellent thermal performance, making it ideal for demanding environments. With flexible OEM and customization options, it can be tailored to meet specific requirements in robotics, industrial automation, AGV systems, and medical equipment.

HOLRY, as a professional China frameless motor manufacturer, ensures stable quality, reliable performance, and fast delivery for global customers. The 115mm frameless motor is an ideal choice for engineers and OEM buyers seeking high efficiency and long service life in advanced motion control systems.

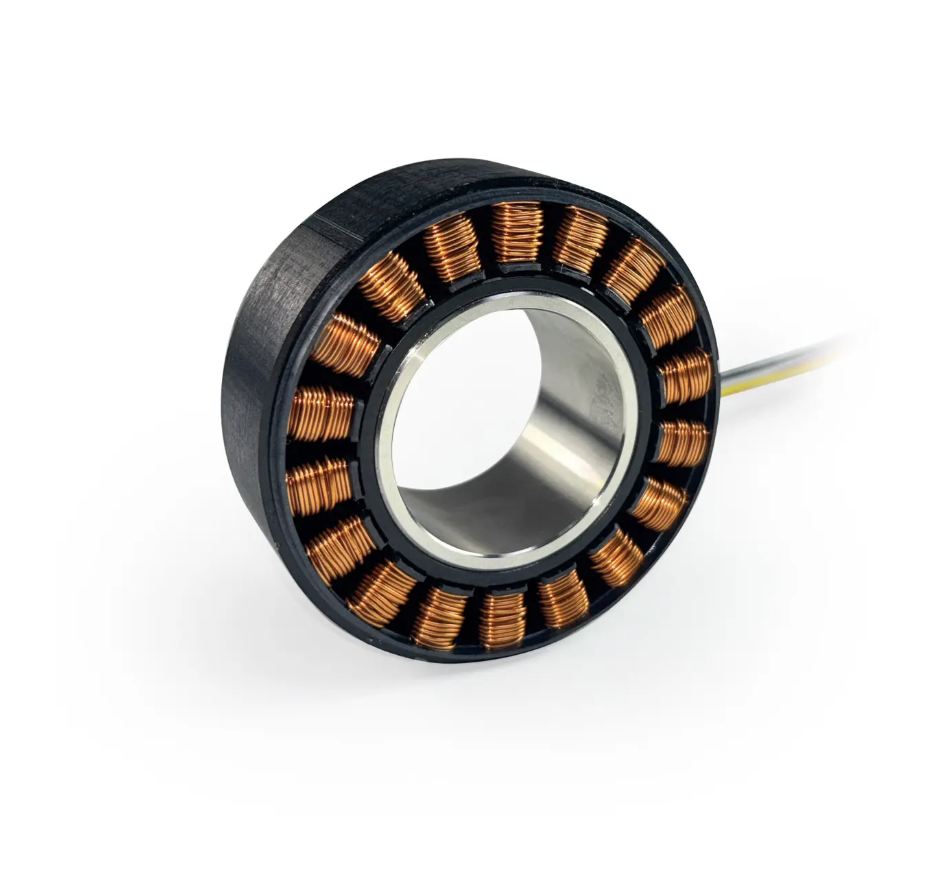

115mm Frameless BLDC Motor Supplier - Custom OEM Factory - HOLRY

Application of Fulling frameless motor - HOLRY

Curves

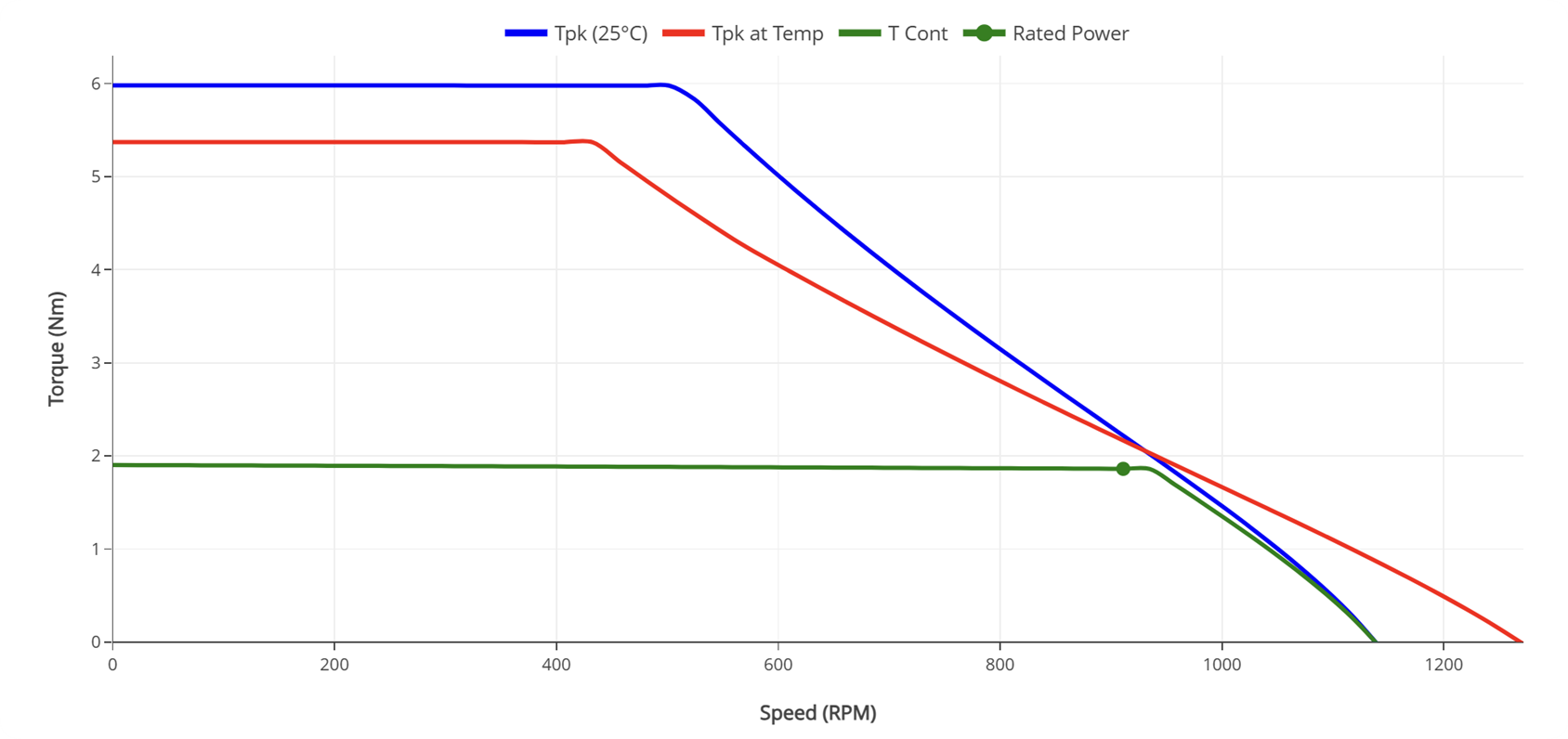

115mm Frameless BLDC Motor Curves

115mm Frameless BLDC Motor Performance Curves - HOLRY

Specifications

115mm Frameless BLDC Motor Specifications

Operating Specifications

Ambient Temp	25 ℃
Winding Temp	155°C
Winding adjustment	0
System Friction	0 N·m
Heat Sink	12" x 12" x 0.375"

Performance Specifications

Bus Voltage (Vbus)	48 VDC
Max Cont. Torque (Tcont)	1.901 Nm
Max Cont. Current (Icont)	4.37
Peak Torque (Tpk)	5.981 Nm
Peak Current (Ipk)	13.27 Arms
Rated Torque (Trtd)	1.860 Nm
Rated Power (Prtd)	177 W
Rated Speed (Nrtd)	911 RPM
