76mm Frameless BLDC Motor

Availability:
Quantity:
Inquire Add to Basket

Product Description

76mm Frameless BLDC Motor

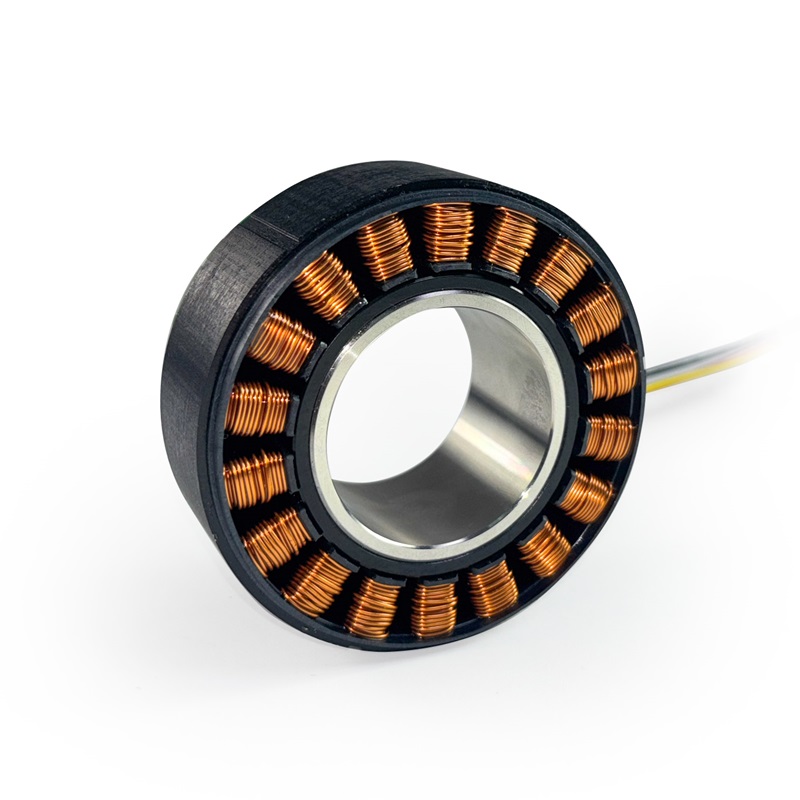

HOLRY 76mm Frameless BLDC Motor offers compact structure, high efficiency, and smooth operation. Engineered for OEM applications in robotics, automation, and precision equipment.customizable design, and reliable performance. Perfect for robotics, medical devices, and advanced motion systems.

76mm Frameless BLDC Motor - HOLRY

Curves

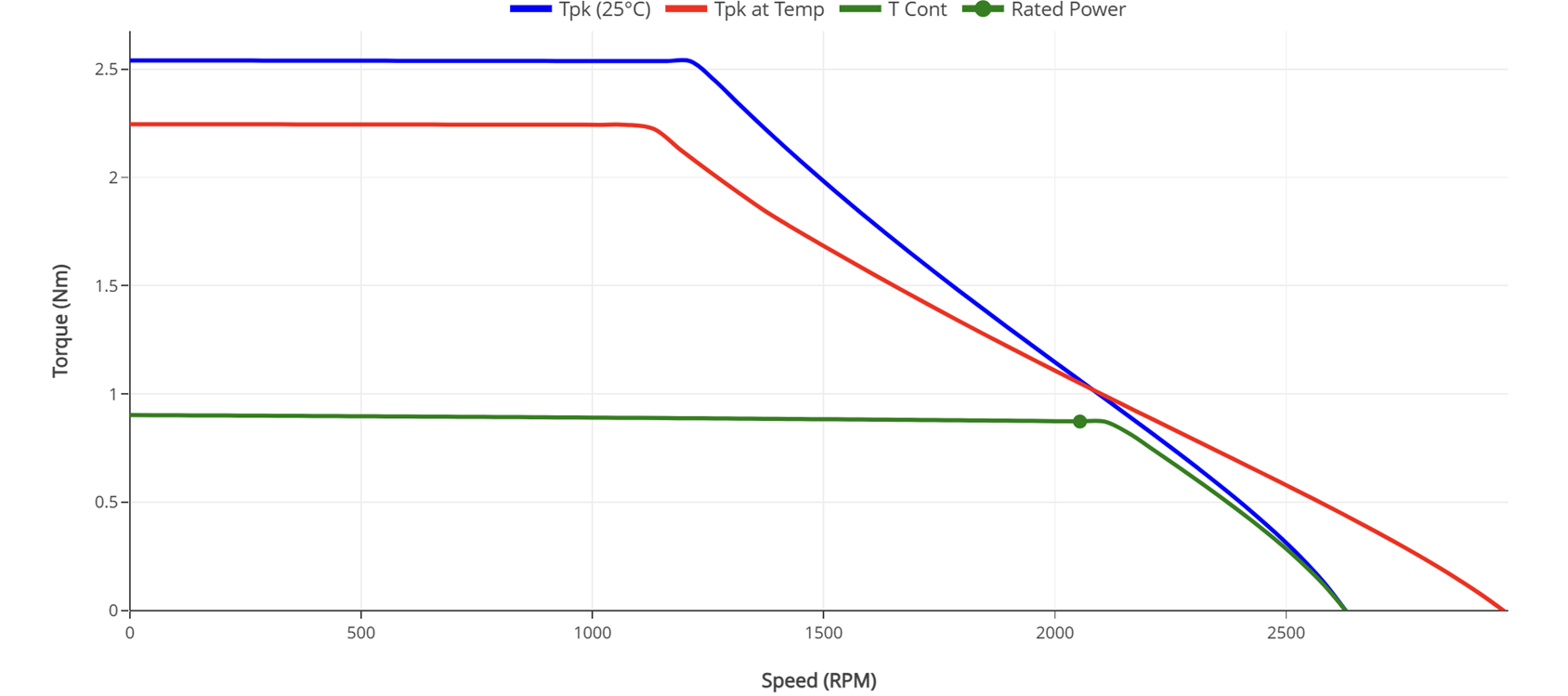

76mm Frameless BLDC Motor Performance Curves

76mm Frameless BLDC Motor ，70mm Frameless Motor - HOLRY

Specifications

76mm Frameless BLDC Motor Specifications

Operating Specifications

Ambient Temp 25 ℃
Winding Temp 155°C
Winding adjustment 0
System Friction 0 N·m
Heat Sink 7.5" x 7" x 0.375"


Performance Specifications

Bus Voltage (Vbus) 48  VDC
Max Cont. Torque (Tcont) 0.631  Nm
Max Cont. Current (Icont) 4.19
Peak Torque (Tpk) 1.726  Nm
Peak Current (Ipk) 10.78  Arms
Rated Torque (Trtd) 0.602  Nm
Rated Power (Prtd) 166  W
Rated Speed (Nrtd) 2642  RPM


Electrical  Specifications

Rm at Tamb 0.9522  Ω
LM 1.062 mH
Back EMF 14.88 Vpk / kRPM
Kt at Temp 0.15  N·m/Arms
Km 0.146  Nm/√W
Commutation sine
NL Comm Freq 538 Hz


Mechanical Specifications

Stack Length
 8.2 mm
Rotor ID 34 mm
Weight 0.173  kg
Poles 20





Dimensions

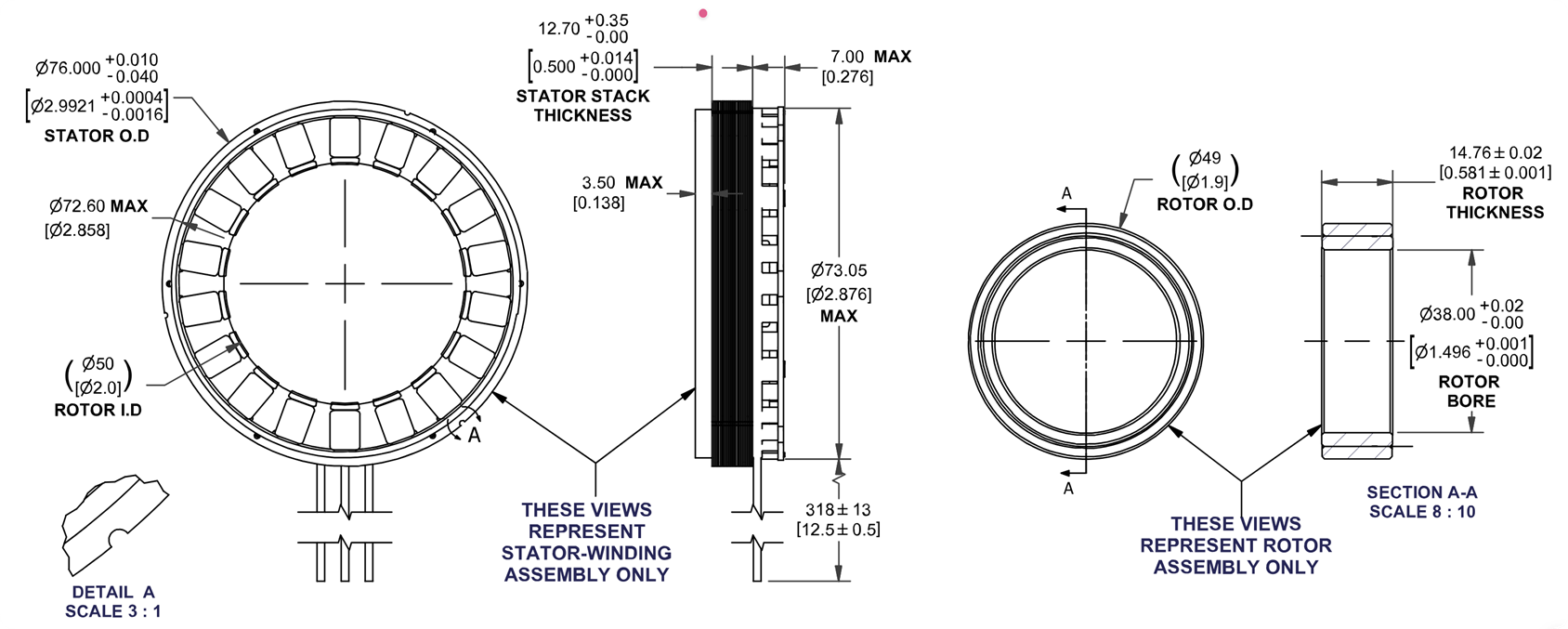

76mm Frameless BLDC Motor Dimensions

76mm Frameless BLDC Motor,76mm Frameless Motor - HOLRY
